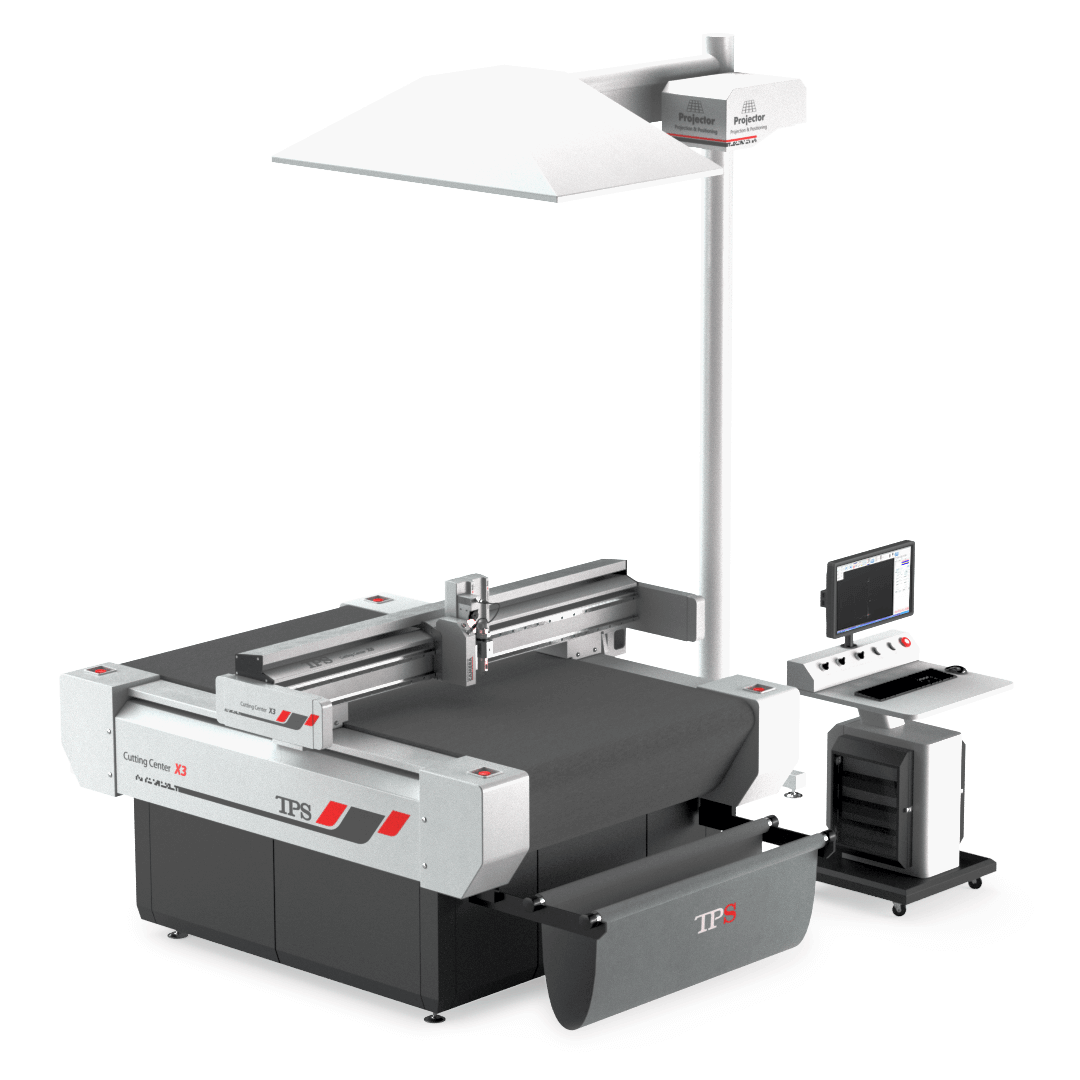

TPS X3 Digital Cutting Machine
The TPS X3 is our small-size flatbed digital cutting machine; it is a great entry-level cutter for small to mid-sized businesses. This cutter focuses on the intelligent cutting of non-metallic materials into different designs. It can quickly complete various operations, such as full-cutting, half-cutting, boring, milling, punching, creasing, and marking, easily solving production efficiency problems like those found in sample-making and small batch production.
Explore the key features
of the TPS X3
2-Zone Vacuum Bed
The industrial-strength aluminum honeycomb vacuum table with independent 6-zone vacuum system guarantees perfect flatness for all media types. The conveyor belt is made of durable 4mm-thick felt with excellent permeability and good wear resistance for a long service life. The table comes with a powerful vacuum pump for superior downward pressure to ensure no movement during operations.

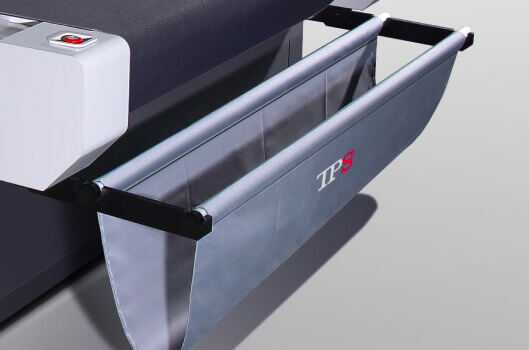

Material Holder
The holder is a simple mechanism located at the front of the cutter used to collect loose cut material. It helps quickly separate finished products from scraps.
Reverse Thrust Air Cushion
Thrust reverse valves built into the table's vacuum system create an air cushion that helps move roll or rigid media smoothly along the table. The unique air cushion technology also minimizes registration mark capture errors.

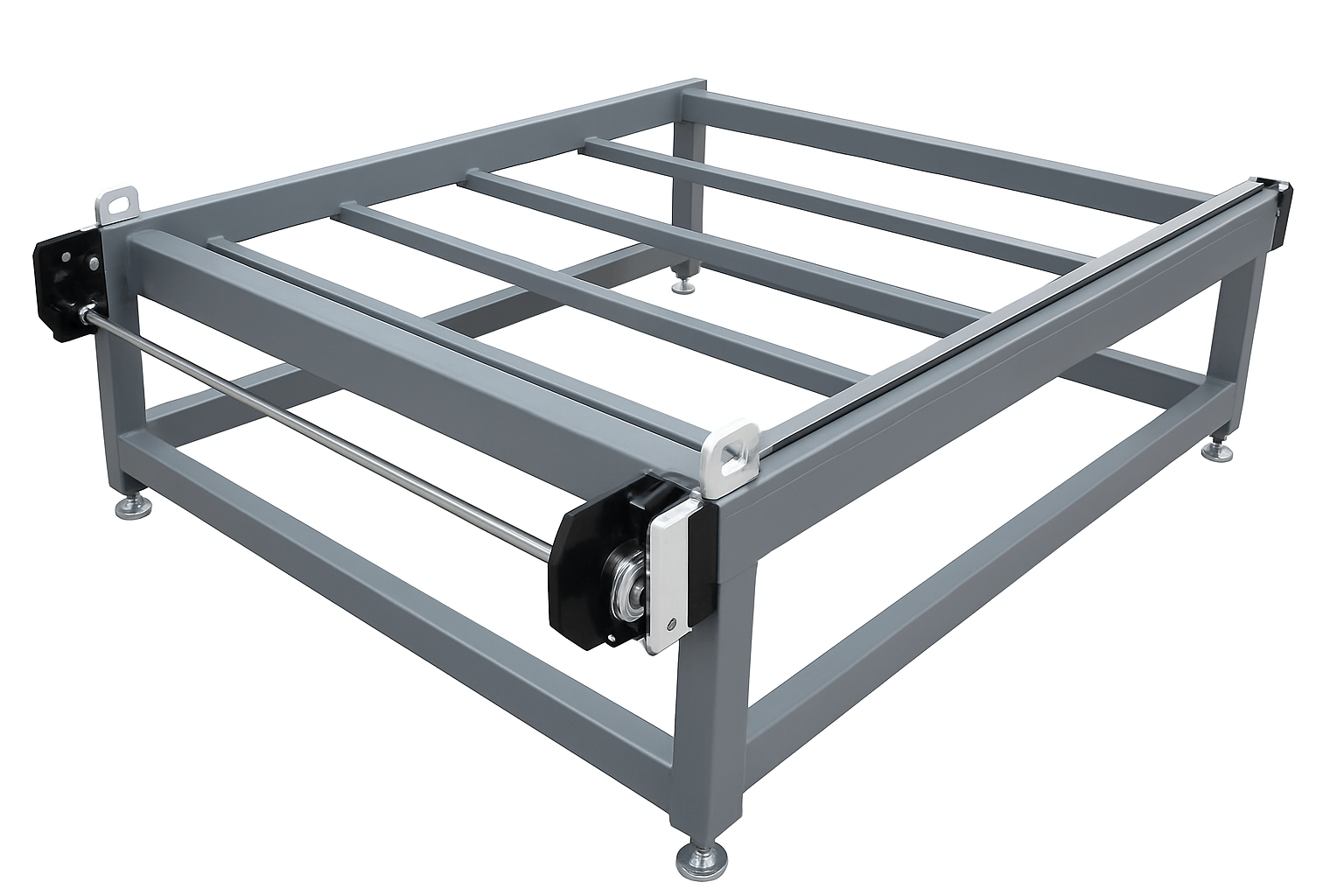

Precision-Welded Frame
The cutter's frame is built to heavy-duty, industrial-grade standards. The assembly process involves pre-welding treatment, machine welding, and post-welding heat sealing under strict quality control for the strongest and most durable frame possible.
Vacuum Pump Control System
The TPS cutter's powerful vacuum pump ensures a powerful table grip on all types of media, while its proprietary control software is conveniently managed using the built-in computer system.
Advanced Servo Amplifier Drive
The dedicated amplifier supports a 2 kHz response speed and with a 150 Mbps optical network connection offers the shortest takt times possible. The servo motor is equipped with a high-resolution encoder for ultrafine accuracy, and the large capacity capacitor allows regenerative energy to be used efficiently, reducing energy consumption.
Linear Guideway Rails
Linear guideways provide extremely low-friction movement able to take loads in all directions. This feature is designed to achieve high precision and greatly enhanced moving accuracy.
Roll Feed Module
A mechanism for smooth feeding of roll materials designed to improve overall cutting efficiency. The conveyer belt combines flawlessly with the feeder module to streamline production.

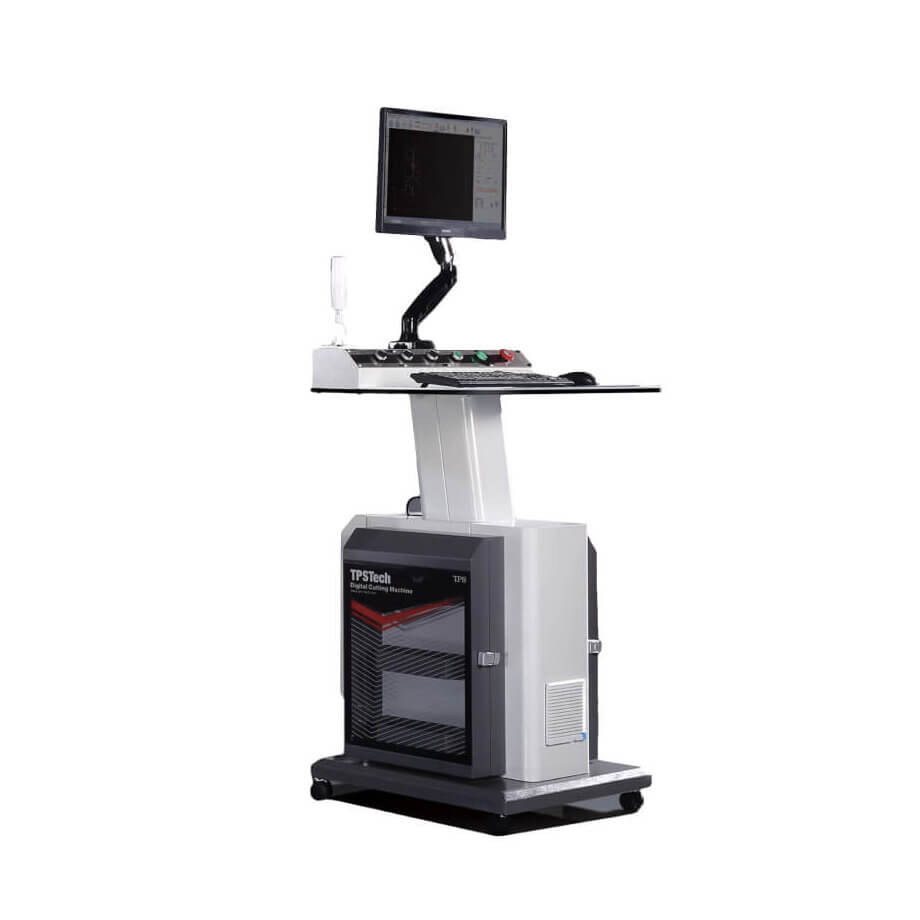

Modern Computer System
A complete workstation for operating TPS software. Includes performance components, a 4K monitor, and the latest Windows operating system.
TPS Software
The included TPS software offers several useful features, including material irregularity compensation, automatic edge and positioning detection, serif avoidance, multi-tasking, and multi-position cycle cutting.

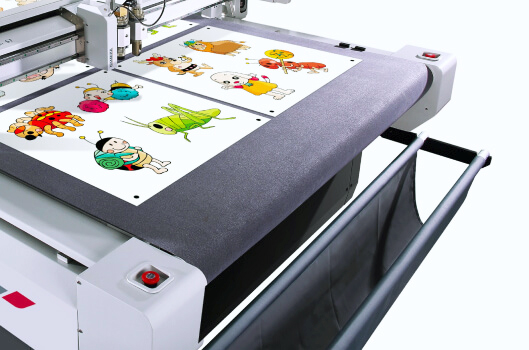

Conveyor Feeding System
The cutting mat is a belt that forms a closed loop around pulleys so it can continually rotate, allowing continuous automatic material feeding and making the cutting length essentially unlimited.
Cutter configurator
Modules

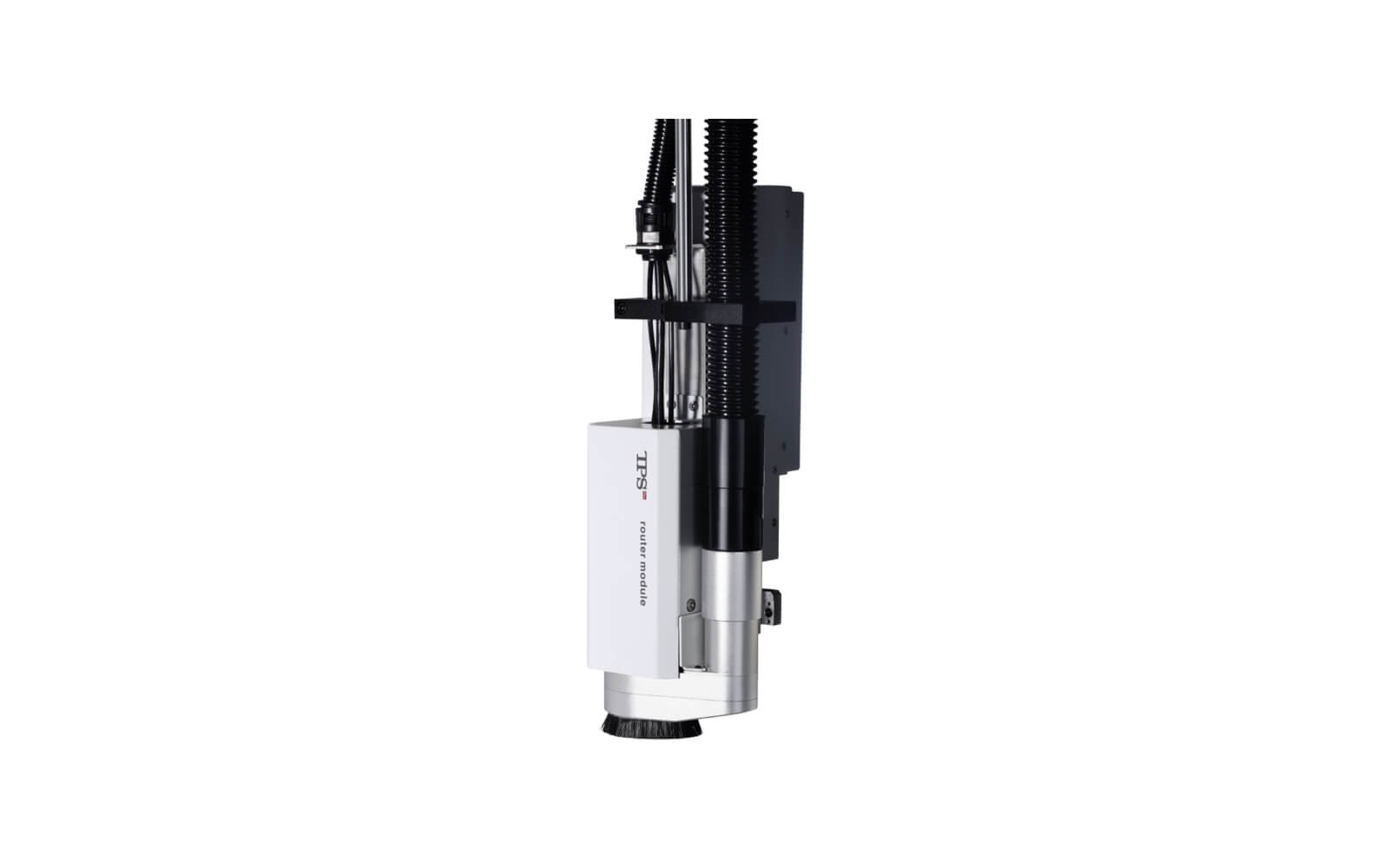

Router Module 1000W (Germany)
Router modules are built around a high-performance, high-frequency spindle. Vacuum cleaning system included. Mills up to 60,000RPM and is mainly designed to cut acrylic, MDF, ABS plate, and other hard materials.
Router Module 1800W (China)
Router modules are built around a high-performance, high-frequency spindle. Vacuum cleaning system included. Mills up to 60,000RPM and is mainly designed to cut acrylic, MDF, ABS plate, and other hard materials.
Router Module 350W (Japan)
Router modules are built around a high-performance, high-frequency spindle. Vacuum cleaning system included. Mills up to 60,000RPM and is mainly designed to cut acrylic, MDF, ABS plate, and other hard materials.

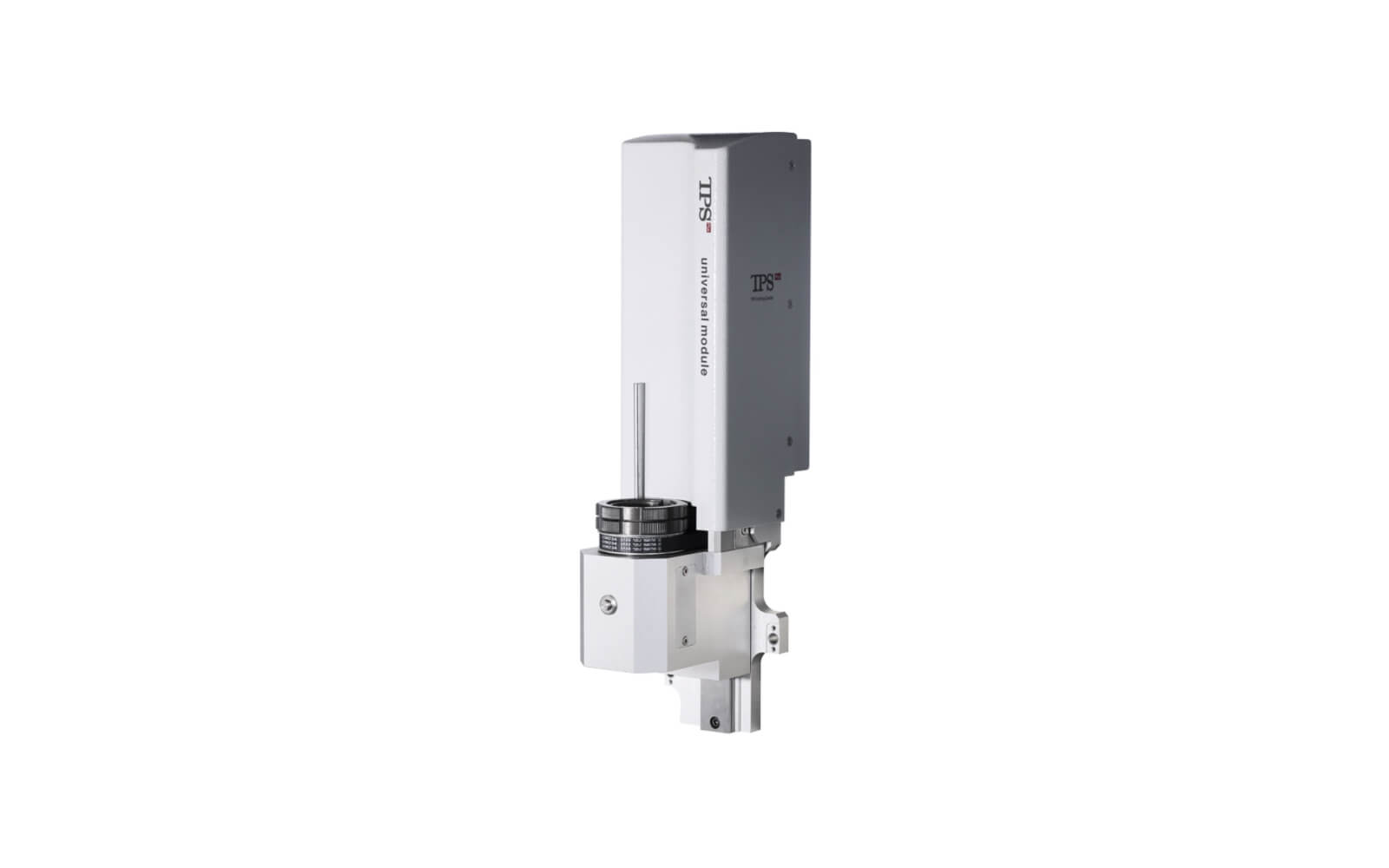

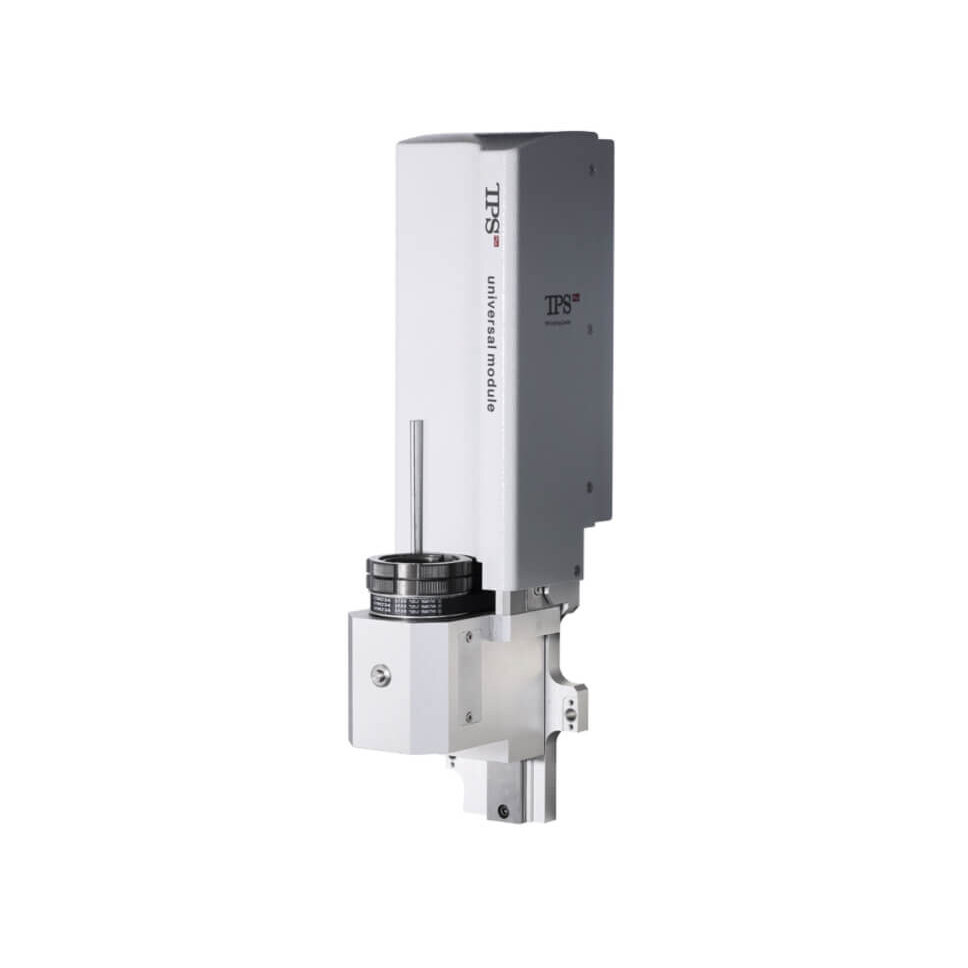

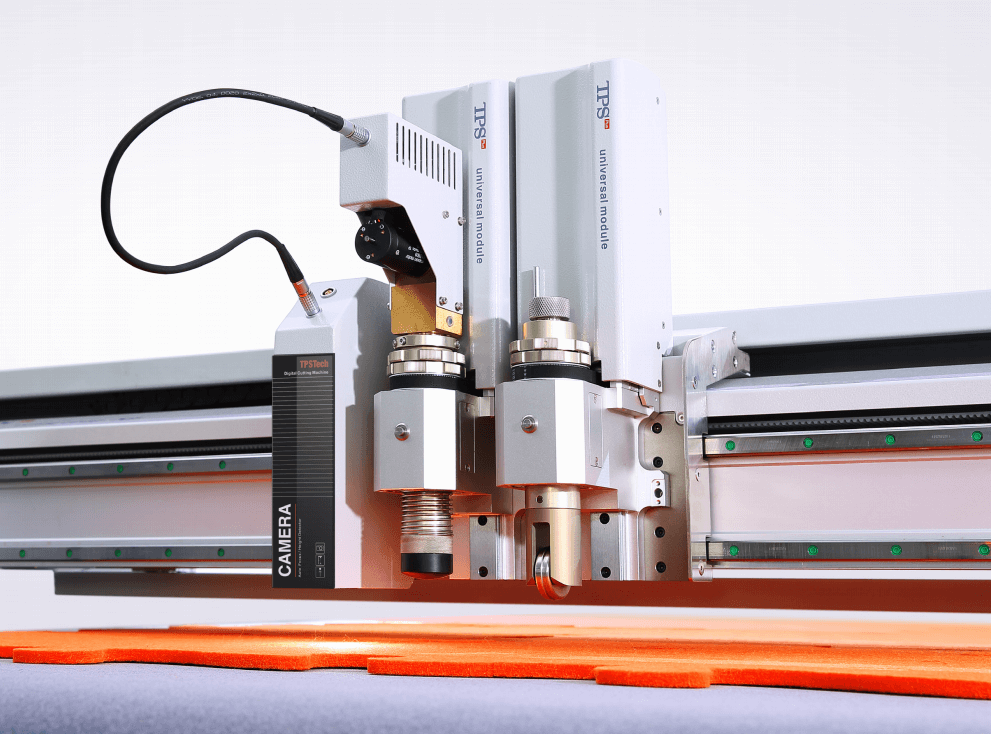

Universal Module
A Universal Tool Holder accommodates a wide range of cutting, creasing, and drawing tools and allows operators to quickly switch modules.
Options
Projector Stand
Projects cutting patterns downward, allowing the operator to quickly visualize where to set up material on the table.
Top Camera
Top camera images the entire table to allow the registration and cutting of irregularly shaped or askew media.
CCD Camera
Enables precise registration of straight and even media with a detection accuracy of 0.1mm.
Height Detector
Allows tabletop mapping to set height compensation, material thickness measurements, and automatic edge-finding and positioning
Calibration Device
Quick and easy automatic tool calibration system uses a fiber optic sensor to accurately detect the installed tool, greatly improving calibration efficiency.
Tools

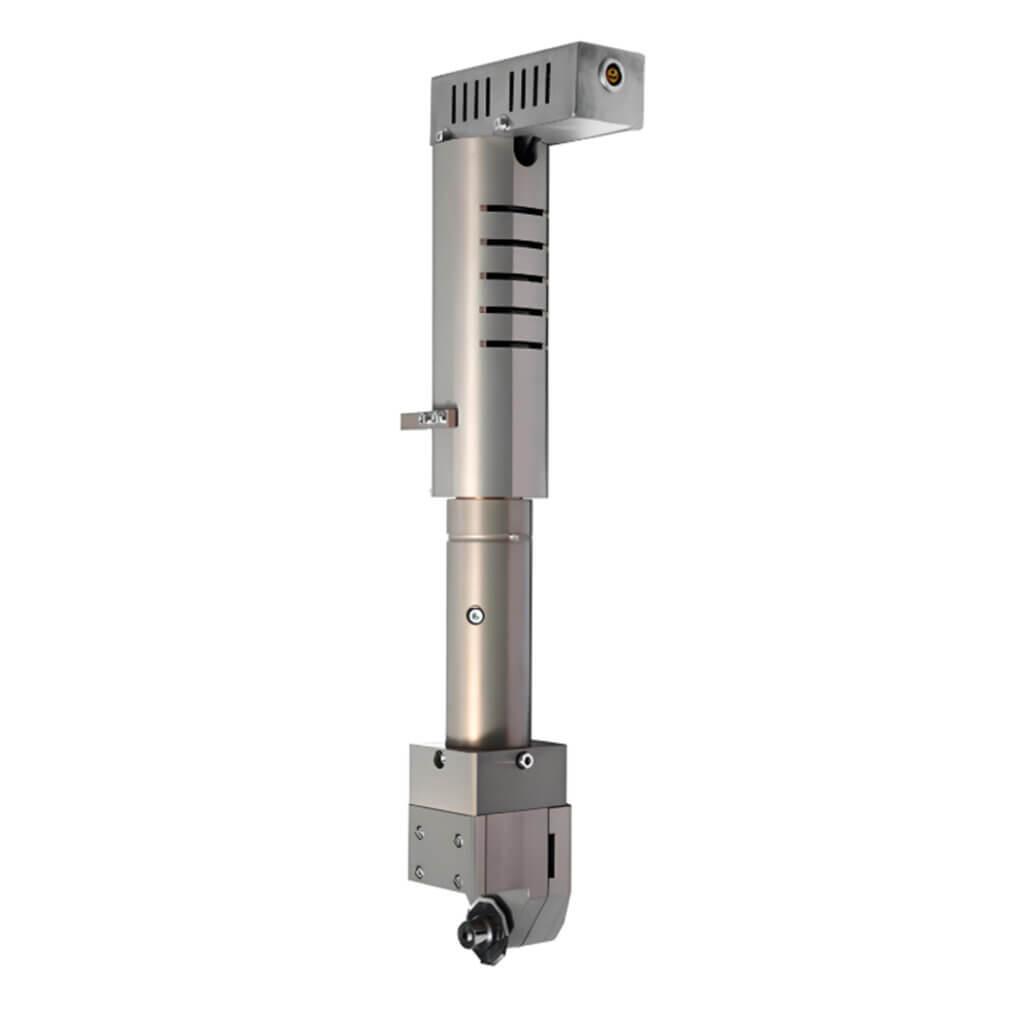

Driven Rotary Tool (DRT)
This tool is designed to cut a wide variety of flexible materials like UV fabric, carbon fabric, glass fabric, textiles, and more.
Pneumatic Oscillating Tool (POT)
Powerful oscillating tool with extended stroke for cutting tough, dense materials.

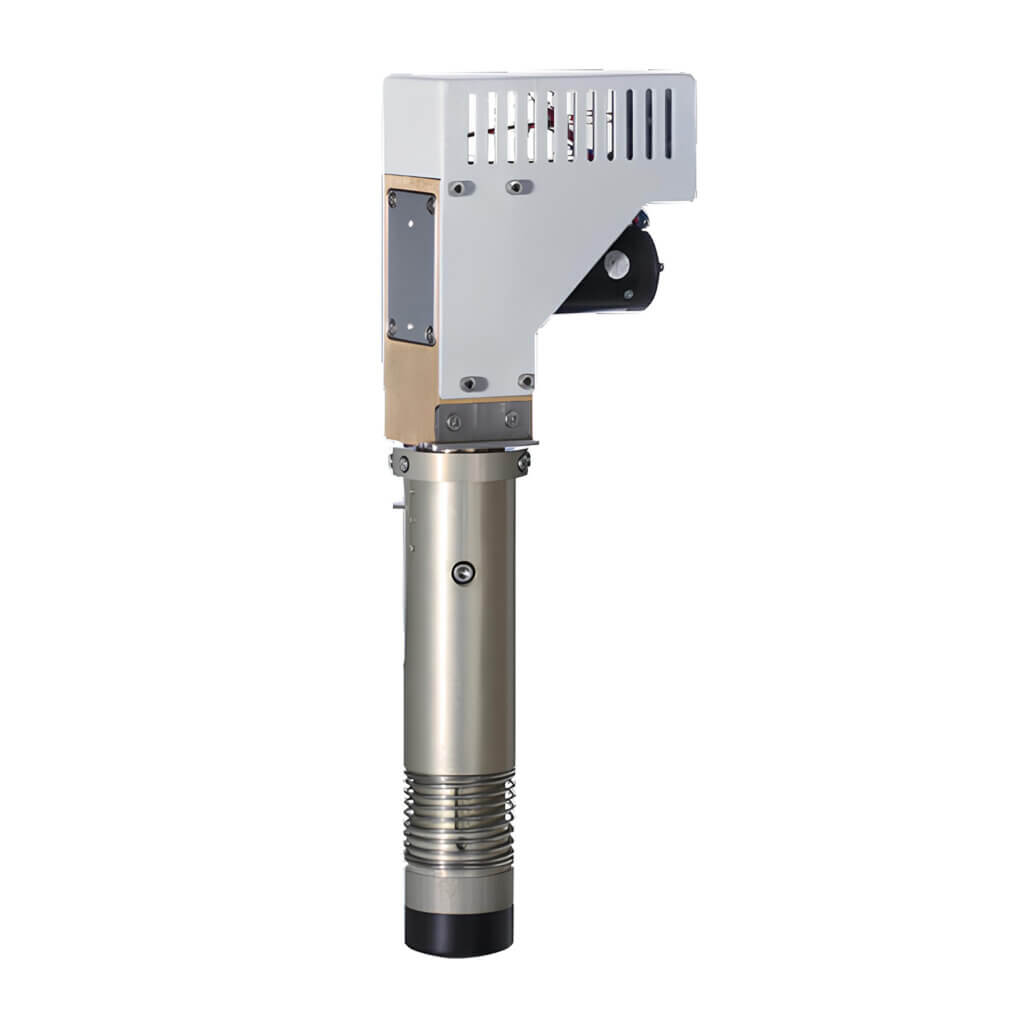

Electric Oscillating Tool (EOT)
The Electric Oscillating Tool excels at cutting composite material, leather, corrugated paper, and woven fabric.
Tool Heads
Plotting Pen Head (PPH)
A tool for precisely marking/labeling materials including fabric, leather, rubber, and Teflon. The plotting pen is used to draw assembly marks, line symbols, and text.
Head holder not included.

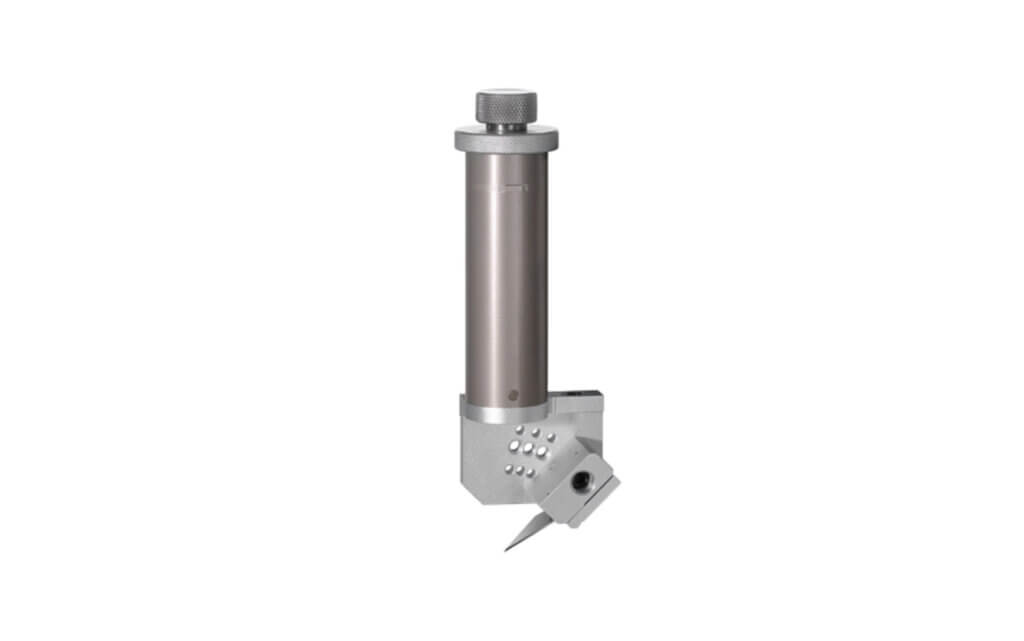

V-Cut Head (VCH)
The V-Cut Tool Head is ideal for producing complex structural designs from Foamcore or sandwich board materials.
Head holder not included.

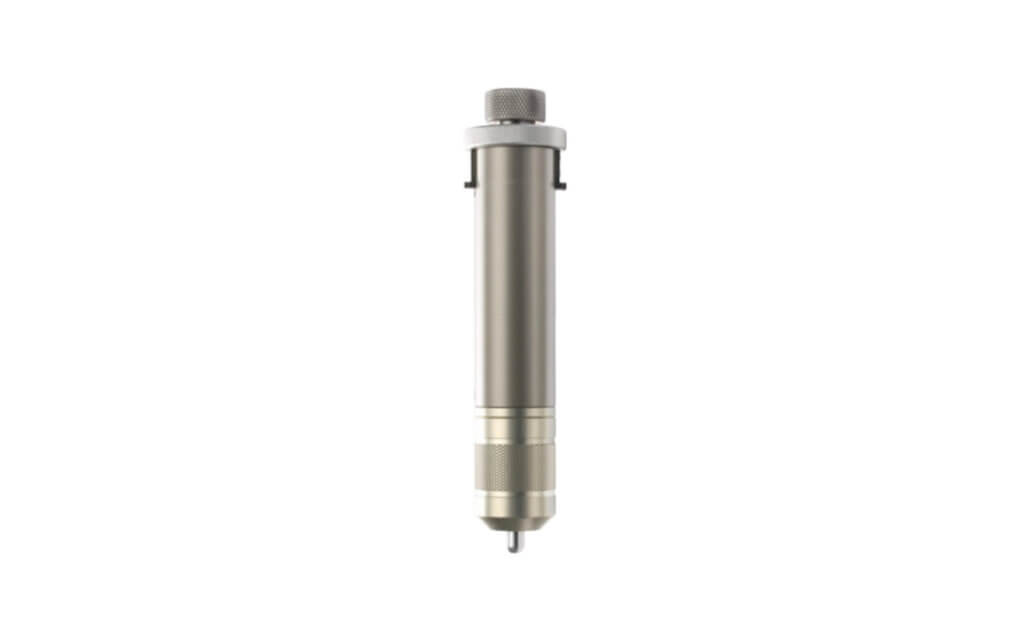

Kiss-Cut Head (KCH)
This tool is designed for precise depth, perfect for cutting all kinds of stickers, vinyl, engineering reflective film, and more.
Head holder not included.
Drag Knife Head (DKH)
The drag tool head is not motor-driven, which makes it perfect for through-cutting material at high speed.
Head holder not included.

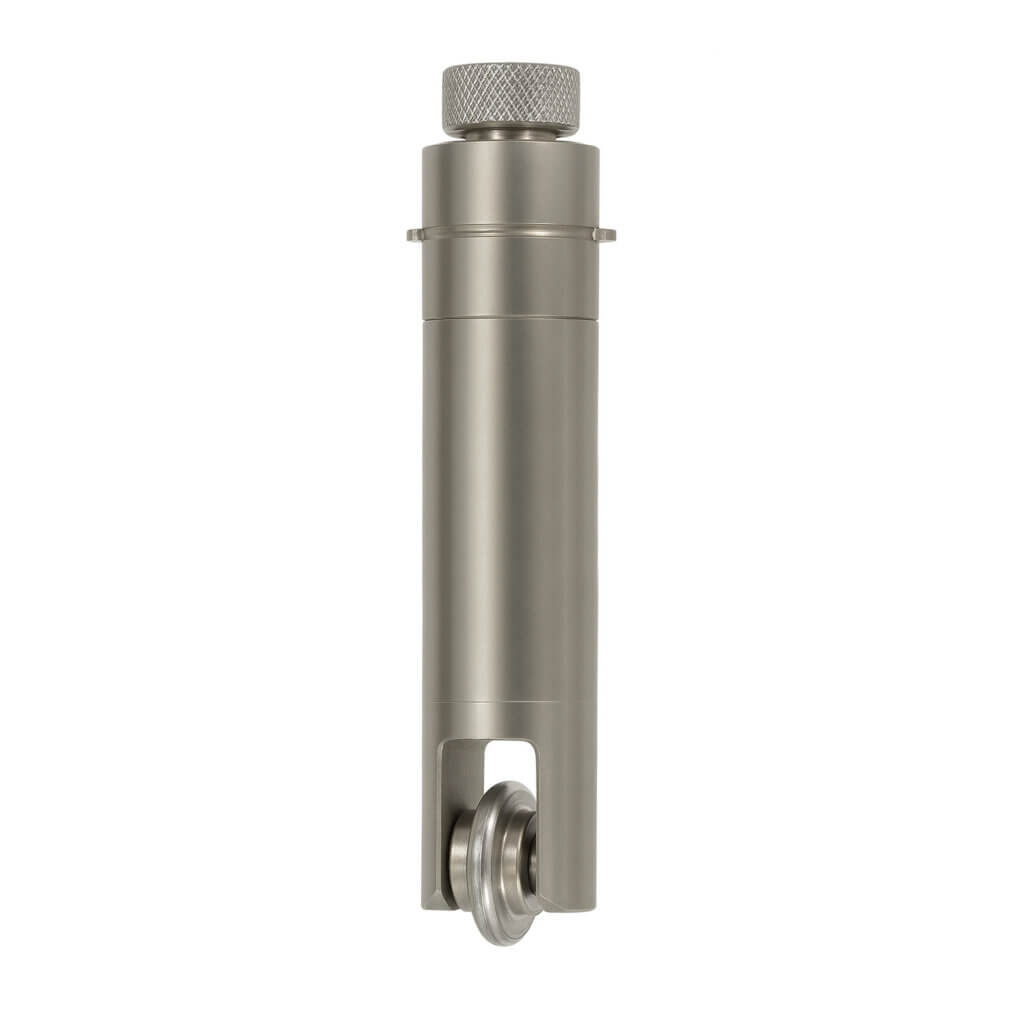

Creasing Wheel Head (CWH)
Creases corrugated and non-corrugated cardboard as well as some corrugated plastics, foam boards, and thin plastics.
Head holder not included.
Head Holder (HH)
A head holder is an essential component in securing various tool heads onto the universal module.
Configuration
Specifications
