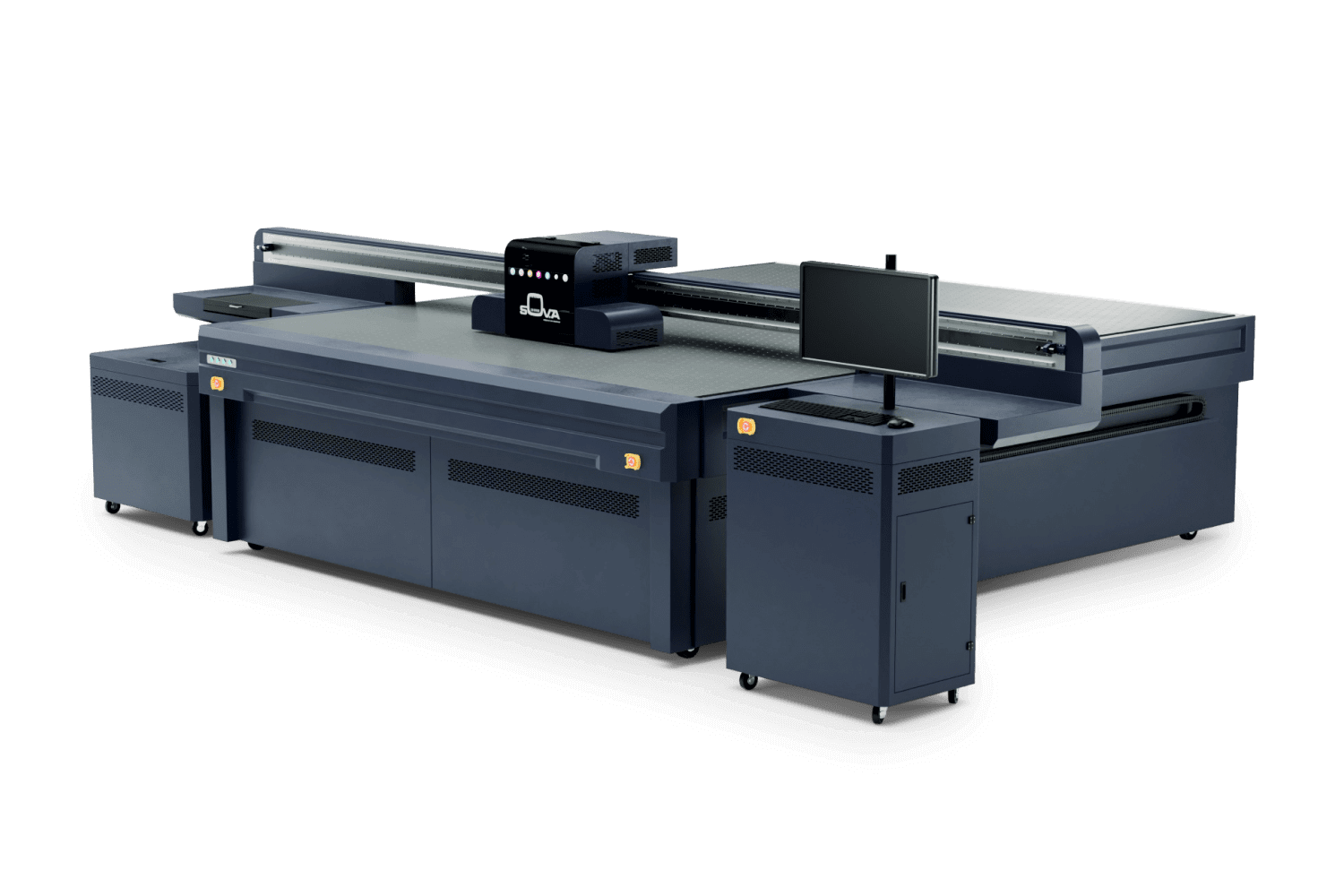

The SOVA Glyph X UV-LED Flatbed Printer

True 8x10' flatbed UV-LED Flatbed Printer powered by premium LIPLA ink and newest generation of Kyocera printheads. Fits two standard 4x8' boards to effectively double the output over single-bed models.

from $116,500
Glyph X

Features that make the SOVA printer efficient and reliable

Kyocera KJ4A printheads

Kyocera KJ4A printheads are manufactured by Kyocera and used in all SOVA UV-LED printers. These printheads provide high-resolution and high-quality images, thanks to their piezoelectric technology and variable dot technology. Each head has 2,656 nozzles, ensuring excellent production performance and vivid, bright colors.

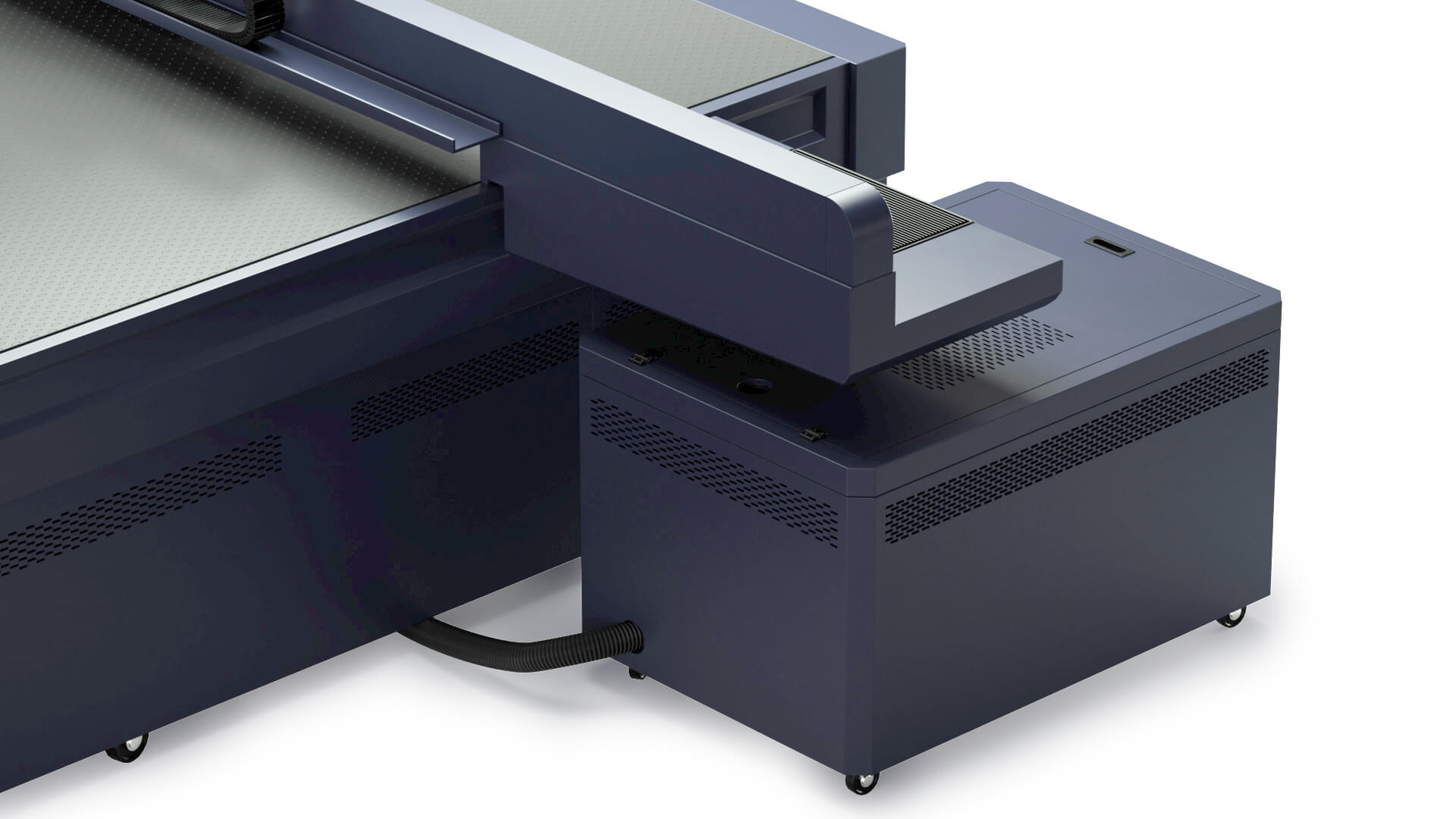

Ink supply unit

Automatic high-volume Ink Supply system ensures continuous printing. The white ink has automatic stirring and circulation system, which avoids the clog of the white printhead. The system continuously circulates the ink between the print head and white ink tank.

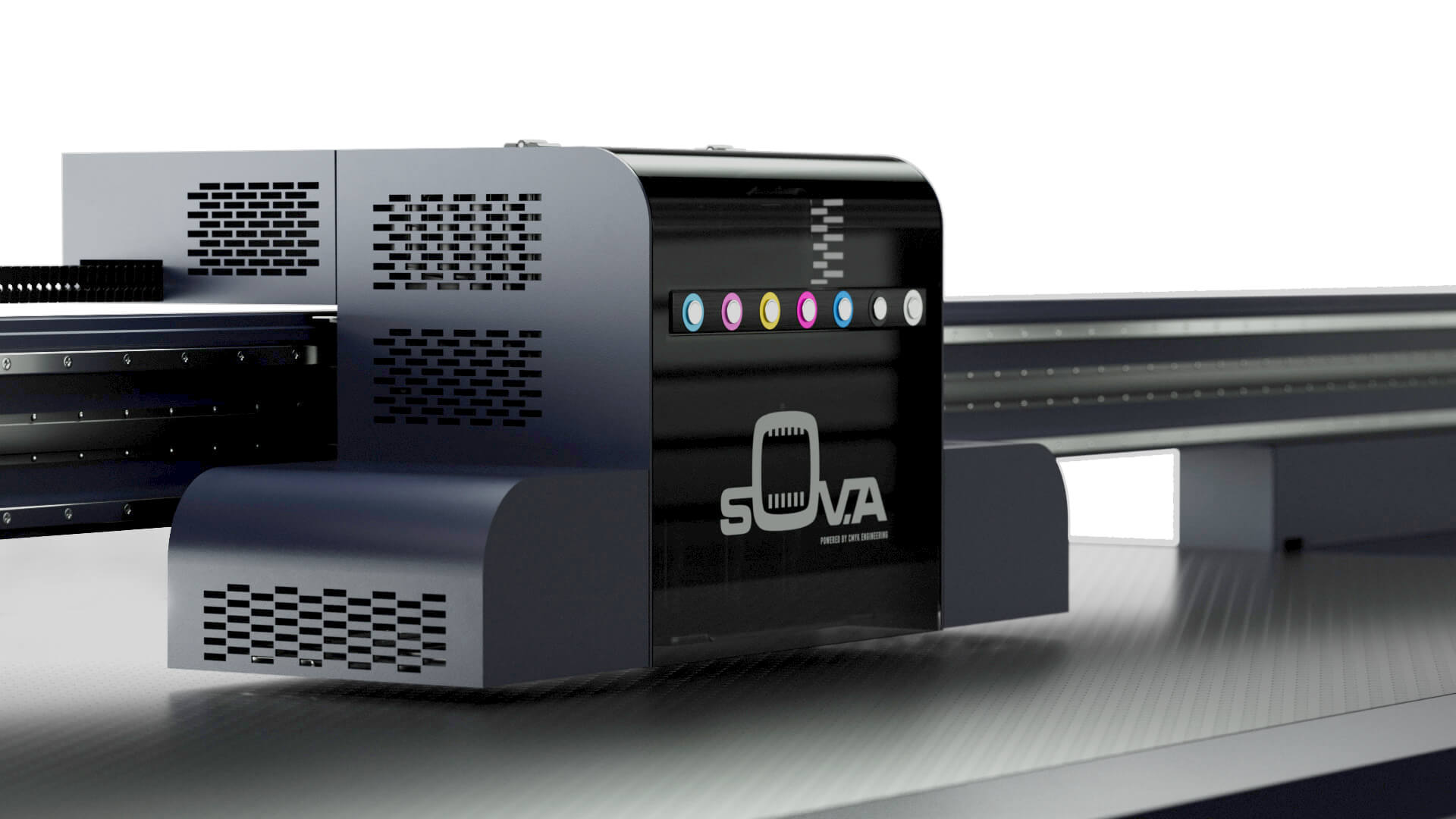

Printhead transport system

With advanced Automatic Height Detector which can detect the material thickness and find a good height position for best quality printing. Thanks to the high-precision impact sensors on both sides of the head transport mechanism, the print heads are not damaged from curled, swollen or surged materials. The mechanism has anti-static devices to prevent electrostatic effect that disrupts the image quality.

Process colors

4 color inks print on colored or white substrates perfectly.

C
M
Y
K

Process colors plus white and varnish

4 color inks print on colored and transparent medias with white and varnished applications in vibrant, eye-catching and bright tones and last longer.

C
M
Y
K
W
V

Process and light colors

Including Light Cyan and Light Magenta 6 color inks print excellent light tones and sleek gradations.

C
M
Y
K
Lc
Lm

Process and lights colors plus White

4 color inks print on colored and transparent medias with white and varnished applications in vibrant, eye-catching and bright tones and last longer.

C
M
Y
K
Lc
Lm
W

Process and Lights colors, White and Varnish

The white and varnish can be printed with Lc, Lm, CMYK inks simultaneously to expose flashy and attractive images for distinctive applications by printing the varnish layer.

C
M
Y
K
Lc
Lm
W
V

Process colors plus white

Transparent and colored substrates are printed directly and at high quality. Highly bright and vibrant colors are displayed thanks to the white layer printed as the last layer under the image.

C
M
Y
K
W

Powered by LIPLA UV-сurable Inks

The ability to produce brilliant and long-lasting colour on all types of materials is a hallmark of LIPLA ink, and you can be well-prepared for the future with this premium ink's perfect compatibility with modern energy-saving LED curing technology.

Head layouts to suit your production needs

The SOVA printers can be configured based on your business needs.

Color Scheme
Description
CMYK + White printing gives you the power to create advanced products like transparent banners, wood prints, and pre-colored substrates.
Productivity
Mode
boards/h
ft²/h
draft
37
1174
express
18
587
production
13
411
quality
9
294
fine art
4
117
$116,500
Color Scheme
Description
This configuration with added Light Cyan and Light Magenta heads offers top-notch quality for a budget price. Light colors allow you to achieve the best quality on halftones and an expanded color gamut.
Productivity
Mode
boards/h
ft²/h
draft
37
1174
express
18
587
production
13
411
quality
9
294
fine art
4
117
$126,000
Color Scheme
Description
Double CMYK with White drastically increases speed compared to the Starter configuration.
Productivity
Mode
boards/h
ft²/h
draft
48
1525
express
24
763
production
17
534
quality
12
381
fine art
5
153
$140,000
Color Scheme
Description
Double CMYK and double White increases white printing speed over the Top Speed config. The pair of white heads enables advanced effects like covering, lining, layering, and texturing. "Sandwich" print mode also available.
Productivity
Mode
boards/h
ft²/h
draft
48
1525
express
24
763
production
17
534
quality
12
381
fine art
5
153
$149,500
Color Scheme
Description
Double array CMYK+W offers the same blazing speeds as Top Speed Plus with the added benefit of light colors for higher quality halftones and a wider color gamut. "Sandwich" print mode also available.
Productivity
Mode
boards/h
ft²/h
draft
48
1525
express
24
763
production
17
534
quality
12
381
fine art
5
153
$168,500
Color Scheme
Description
Quadruple CMYK and a pair of white heads provides you with the highest speed possible—print full boards in under 50 seconds! "Sandwich" print mode also available.
Productivity
Mode
boards/h
ft²/h
draft
73
2351
express
37
1176
production
26
823
quality
18
588
fine art
7
235
$192,000

Gallery

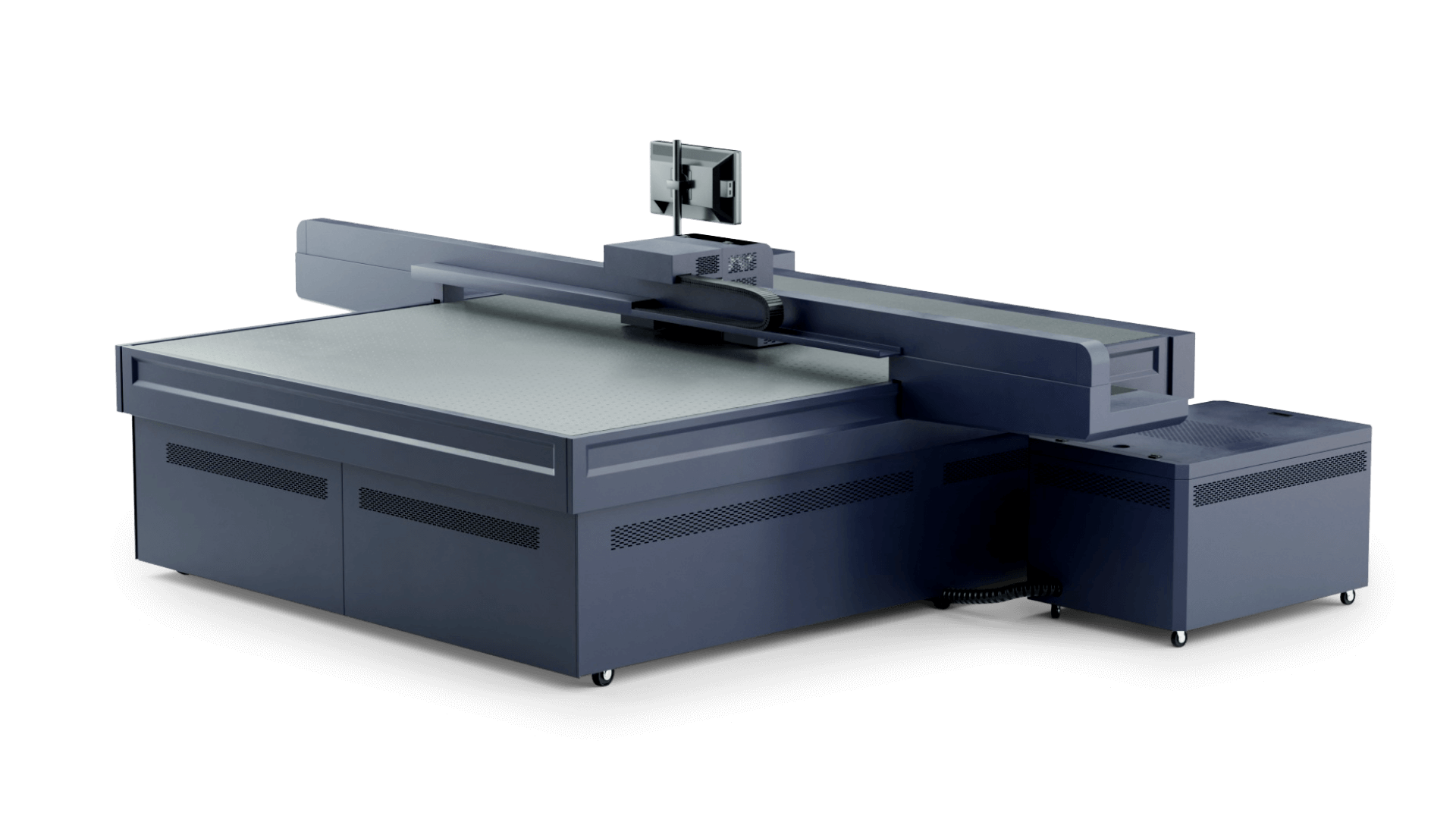

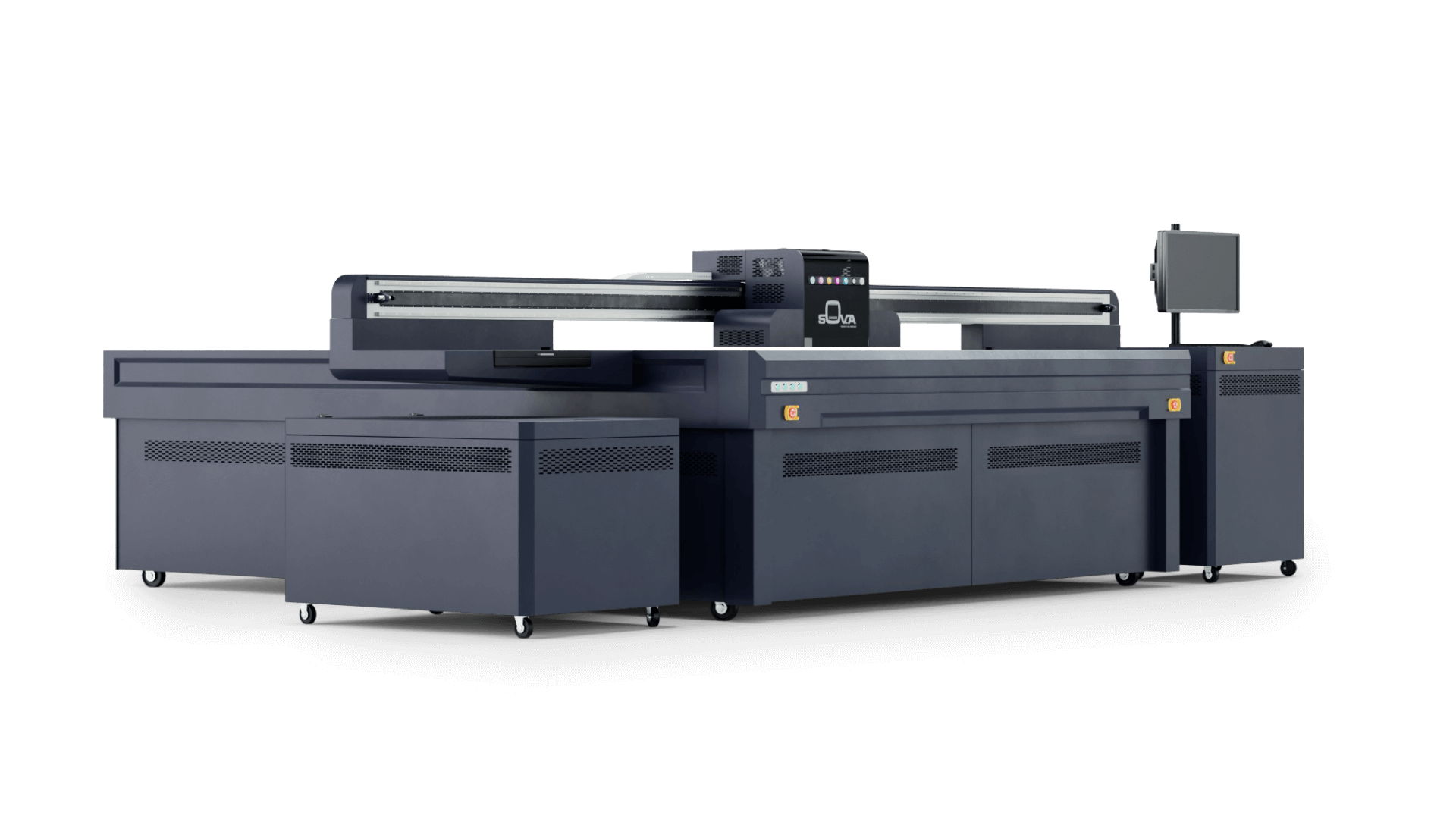

Sova Glyph X UV Printer

Have Any Amazing Projects to Print?

We'd love to help! Contact us to learn more about our printers, schedule a demonstration, or ask us anything else you'd like to know.

Specifications

Printing Size
Bed Size 8x10' (2500x3200mm)
Printer Type
Flatbed
Printhead
Kyocera KJ4A-0300
UV Lamp
UV-LED Lamps
RIP Software
Caldera Grand RIP 14.1
Media Thickness
Up to 100mm/3.93 inches
Ink Color
CMYK, CMYK + W, CMYK + LcLm + W
UV Ink
LIPLA UV INK
Resolution
600x2400dpi
Ink Tank Volume
2L
Image Formats
TIFF, JPEG, POSTSCRIPT, EPS, PDF
Power Supply
AC 220V, 50/60HZ>30A
Enviroment
Temperature 20-28℃ (68-82F), Humidity 40-60%
