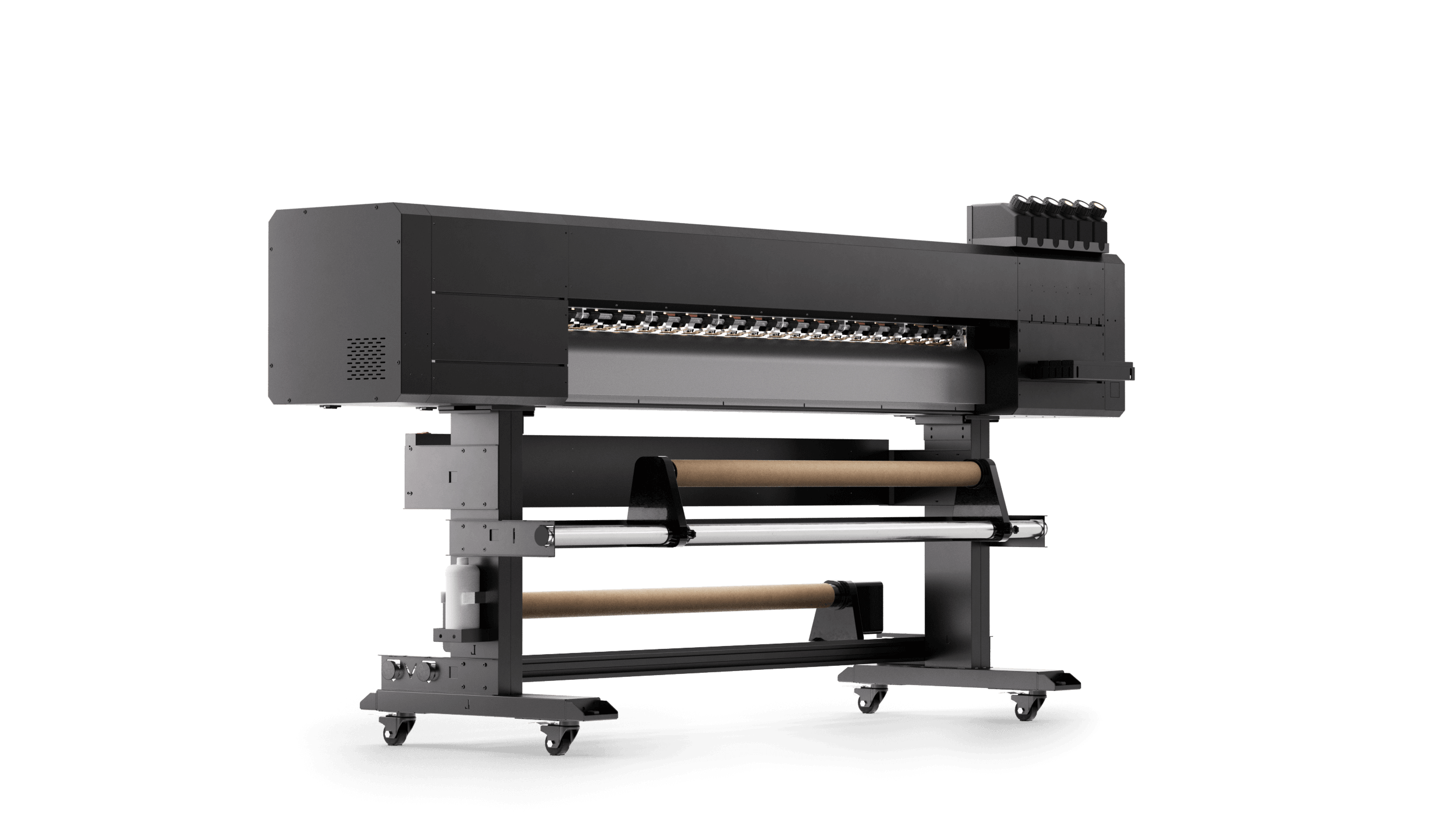

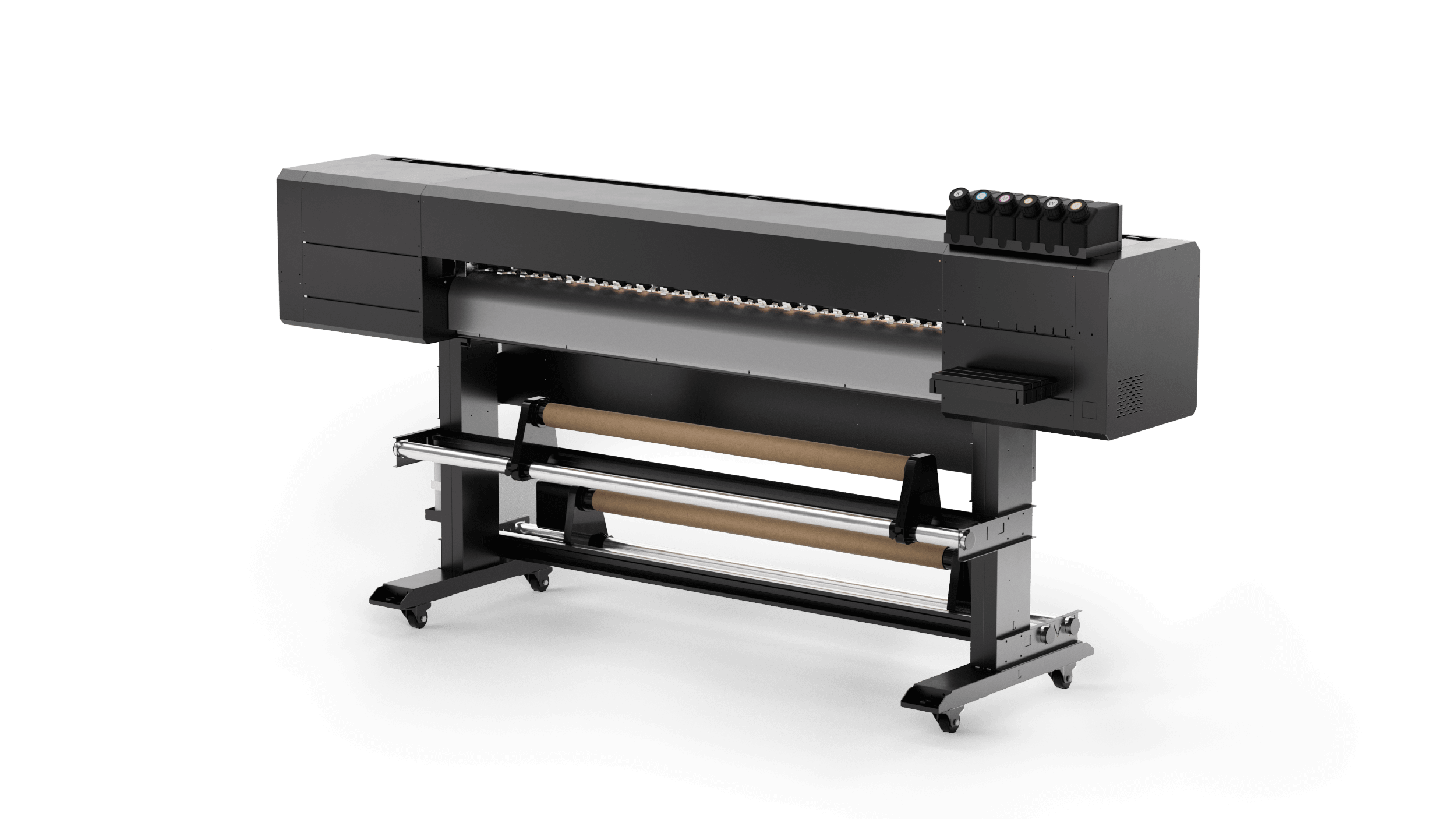

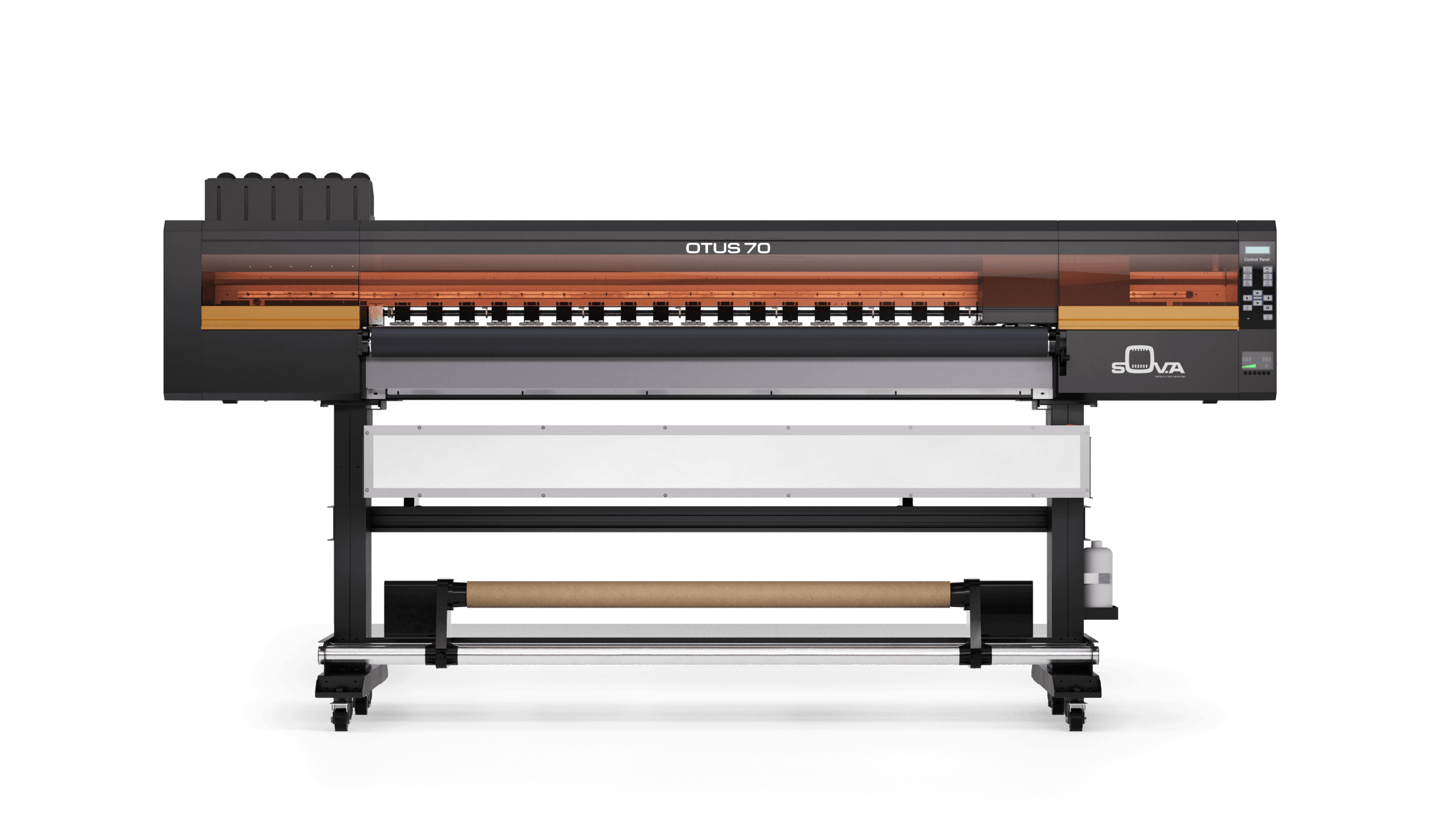

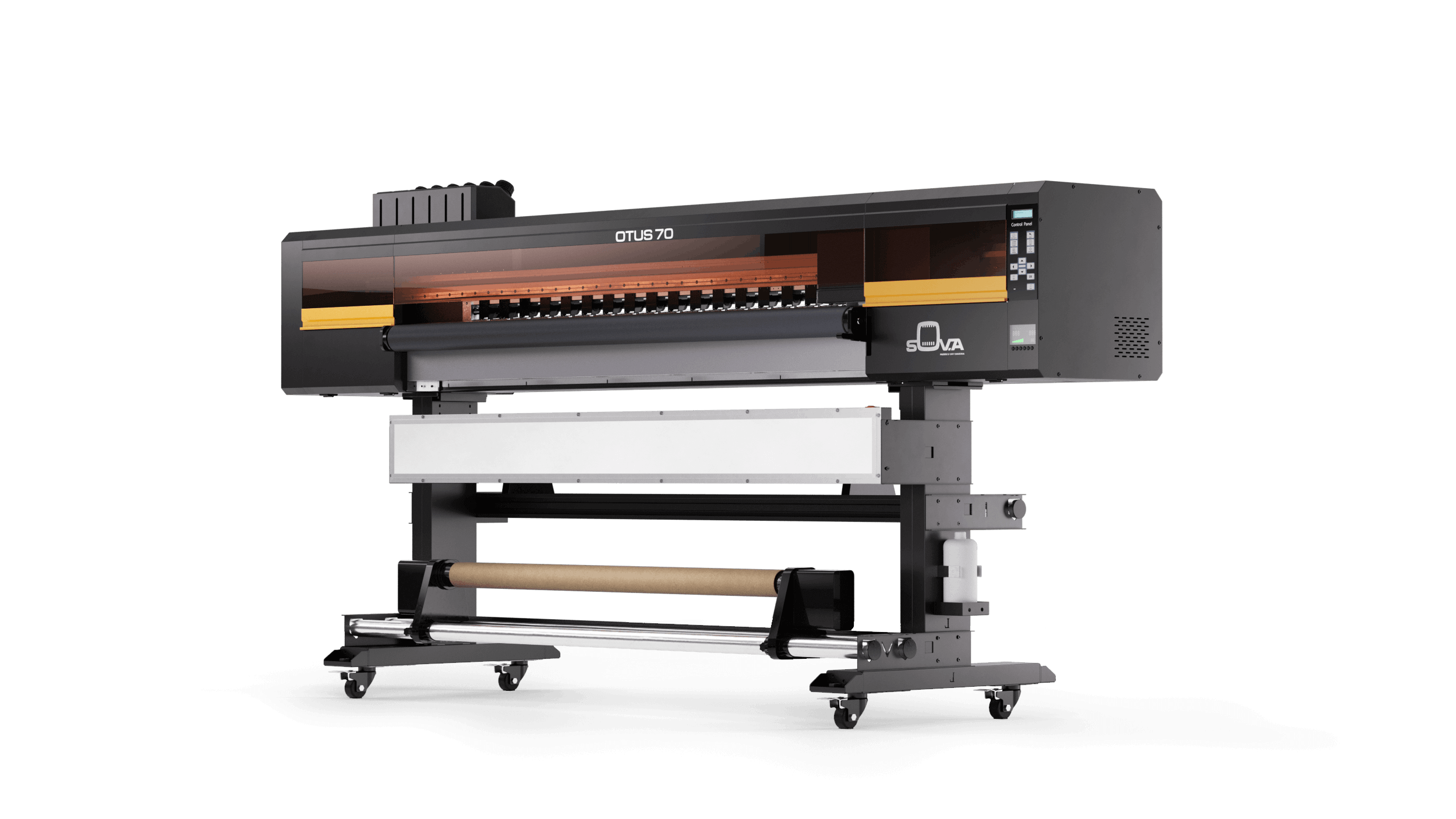

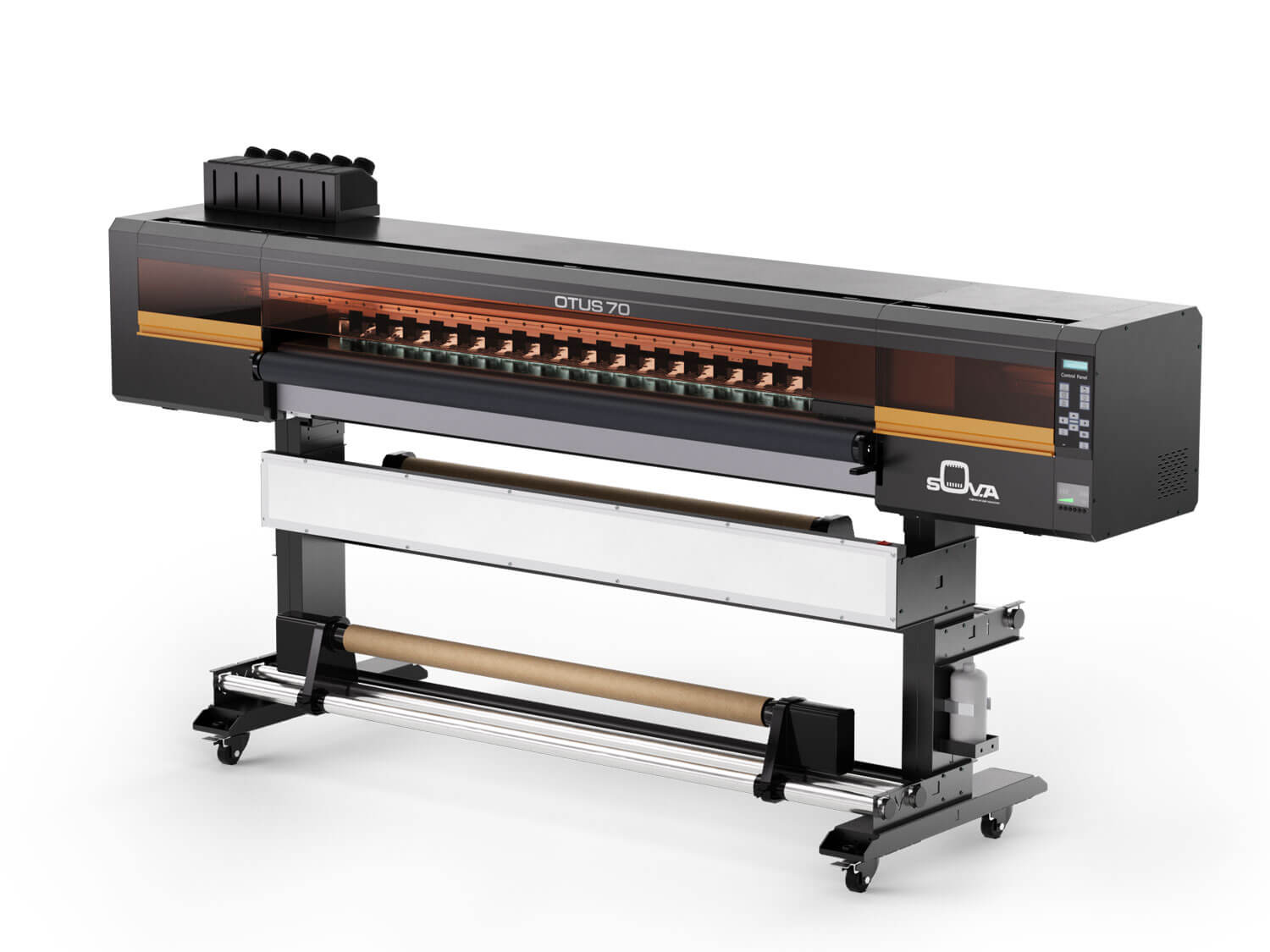

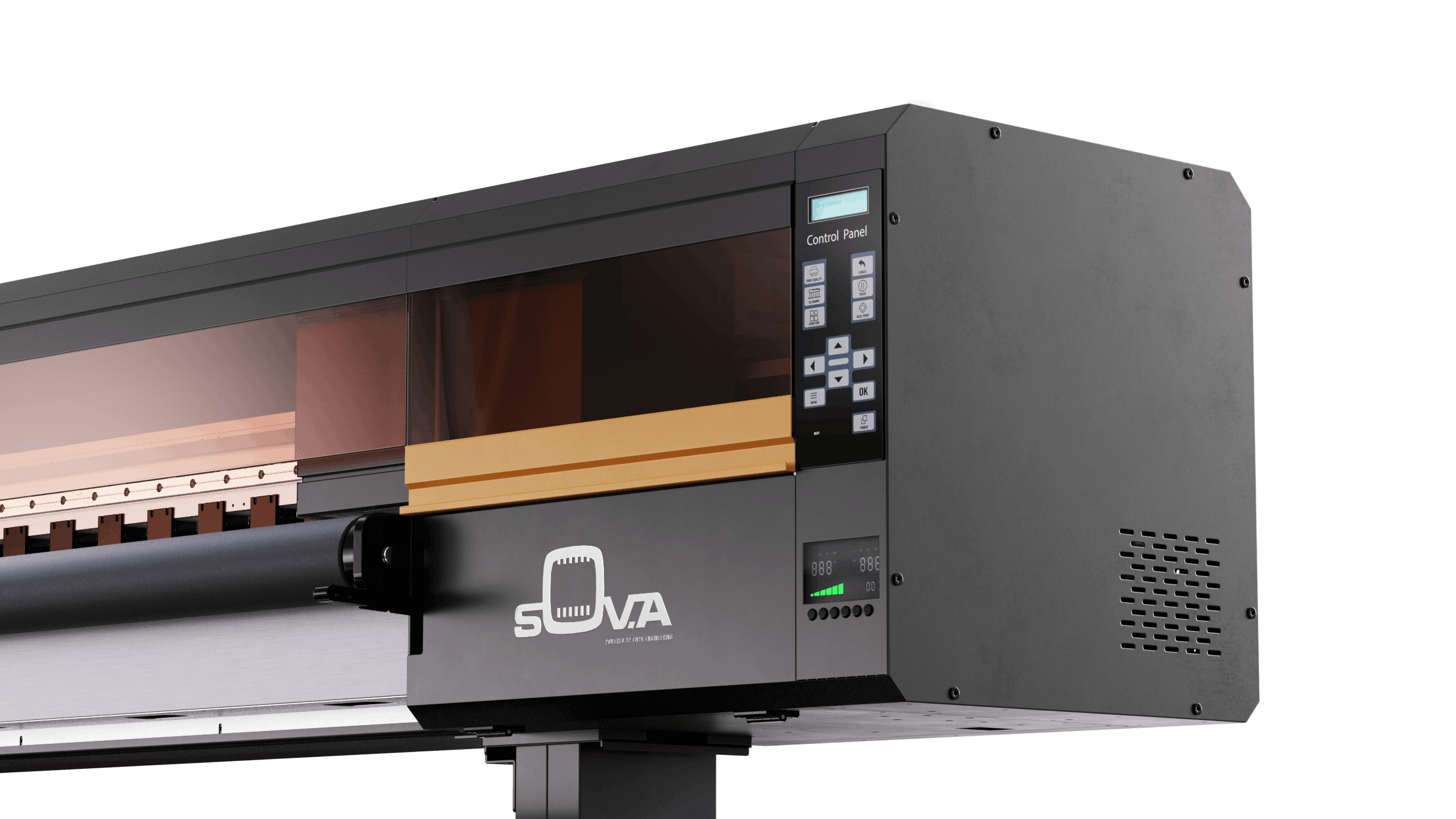

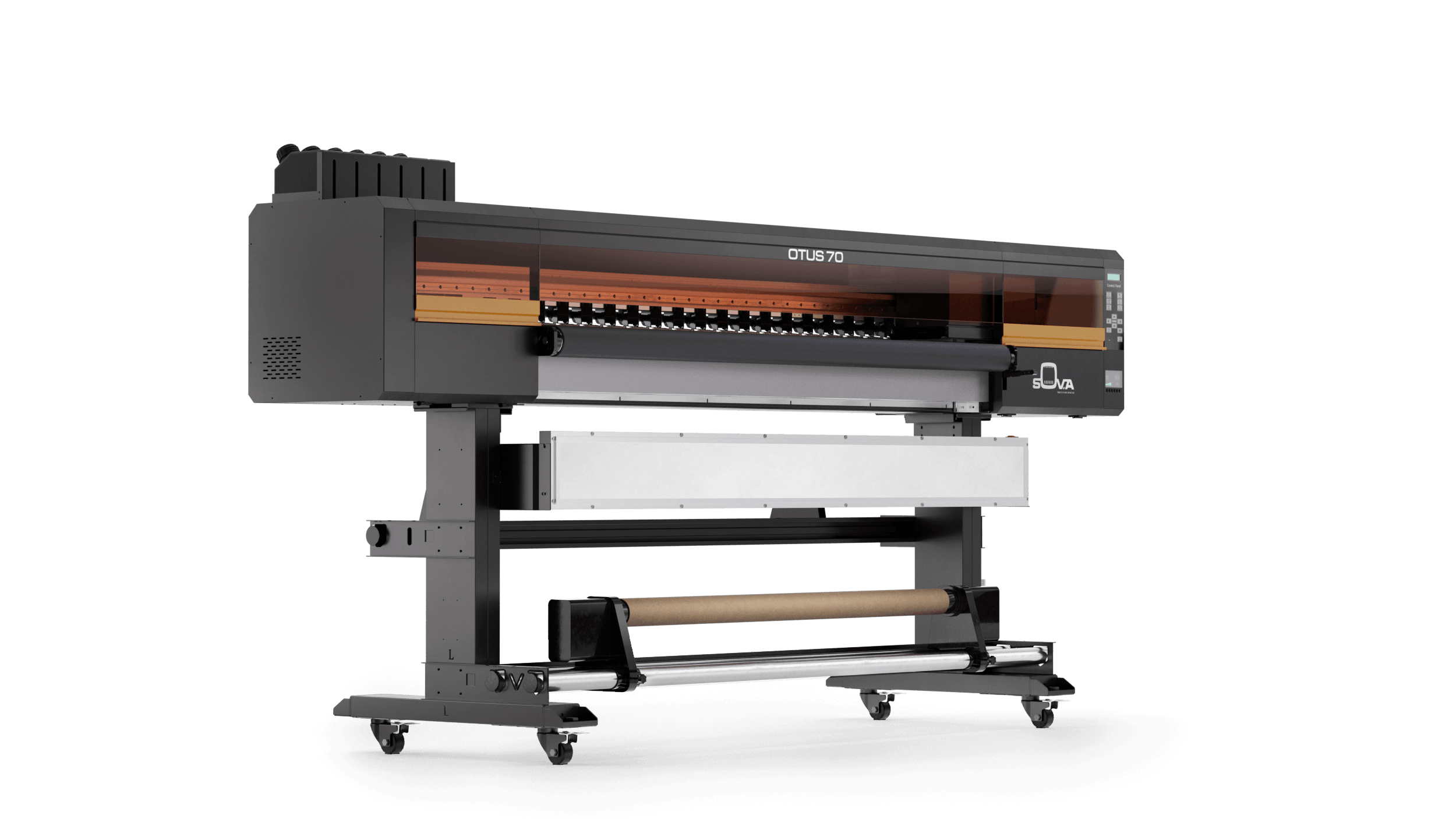

The SOVA OTUS 70 UV-LED Roll-to-Roll Printer
The OTUS 70 is a next-generation 70-inch roll-to-roll UV printer built for high-performance, high-margin output. Equipped with 4 Epson I3200-U1 industrial printheads, advanced servo drive systems, and a robust steel chassis, it delivers industrial production speeds with exceptional color depth and multi-layer capabilities. Ideal for print shops and resellers seeking an alternative to Roland, Mimaki, or Mutoh — with a higher ROI.
Industrial 70" Print Width for Large-Format Demands
With a 70-inch (1800mm) printing width, the OTUS 70 handles wide-format applications effortlessly—from vehicle wraps and banners to wallpapers and backlit displays. Maximize productivity with fewer passes and seamless oversized prints.
Precision Epson I3200-U1 Printheads
Powered by four industrial-grade Epson I3200-U1 printheads, the OTUS 70 delivers ultra-sharp details, smooth gradients, and reliable high-speed printing. Built for durability, these printheads minimize downtime and ensure consistent output.
Versatile CMYK + White + Varnish Ink System
Go beyond standard CMYK with optional white ink and varnish for layered effects, textures, and enhanced durability. Print on transparent media, add spot whites, or apply a glossy/matte finish—all in a single pass.
High-Speed Production: Up to 516 ft²/hr (48 m²/h)
Boost efficiency with speeds up to 516 ft²/hr (max) and 344 ft²/hr in production mode. The OTUS 70 outperforms many competitors, delivering faster turnaround times without compromising quality.
Multi-Material Compatibility: From Vinyl to Leather
Designed for demanding substrates, including vinyl, PET, film, leather, wallpaper, and reflective media. Whether for signage, décor, or industrial applications, the OTUS 70 handles diverse materials with ease.
Built for ROI: A Cost-Effective Alternative to Roland/Mimaki
Engineered for higher profitability, the OTUS 70 combines industrial durability, faster speeds, and advanced features at a competitive price—making it a smart choice for print businesses scaling production.
Configurations
4 Head C+W+C+M/V
Three printheads are dedicated to standard CMYK (Cyan, Magenta, Yellow, Black) color channels, ensuring high-quality full-color printing. One printhead is configured for special effects, combining White (W) and Varnish (V) channels.
3 Head C+W+C
Two printheads are dedicated to standard CMYK (Cyan, Magenta, Yellow, Black) color channels, ensuring high-quality full-color printing. One printhead is configured for White (W) channels.
4 Head C+W+C+Matt V
Two printheads are dedicated to standard CMYK (Cyan, Magenta, Yellow, Black) color channels, ensuring high-quality full-color printing. Other two printheads are configured for White (W) and Varnish (V) channels. Separate Varnish (V) printhead for applying glossy or protective coatings to enhance durability and visual appeal.
Epson I3200-U1 Inkjet Head Features
PrecisionCore technology
MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.
Multi-gray output
Epson's unique VSDT (Variable Ink Drop Technology), smallest ink drop is 2.5PL (Note: PL means picoliter, unit of volume measurement, equivalent to "10 minus 15 times" cubic meter, that is, 1000 cubic microns), free control ejected ink droplet size, thereby reducing graininess of picture, presenting more picture details, smooth color transition, and high saturation.
High resolution
Ink ejection of up to 4 colours realize with high resolution (600 dpi/colour). In addition to the I3200, I1600 has also been added to the lineup in order to meet the various customer needs.
High durability
PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.
Specifications
Gallery
Request a quote or ask a question
We'd love to help! Contact us to learn more about our printers, schedule a demonstration, or ask us anything else you'd like to know.
