- up to 35.3 boards/h or 1130 ft²/h
- Print speed
- 98 × 51 in (2500 × 1300 mm)
- Print area
- up to 10, CMYK+LcLm+W, or double CMYK
- Channels
- Kyocera KJ4A
- Printhead
- up to 4.7 in (120 mm)
- Media thickness
- Caldera RIP
- Software

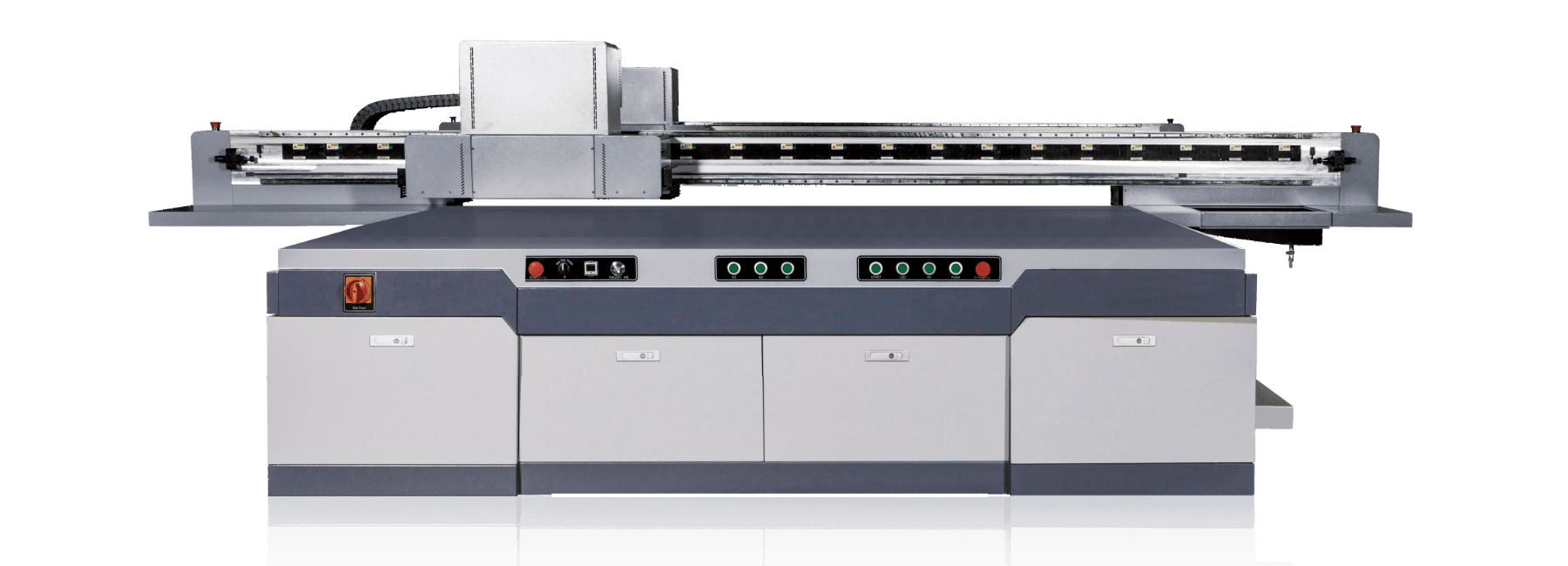

Ultra-wide flatbed for full 4×8' sheets and thick rigid media.
An ultra-wide flatbed with a 2500 × 1300 mm bed — a full 4×8' sheet in one pass — printing white and varnish alongside color in up to eight layers. Variable droplet size holds detail across rigid media up to 120 mm thick: sheet metal, architectural ceramics, decorative flooring and packaging paperboard.
Features
Printhead configurations
Explore different printhead layouts and find the configuration that fits your production needs.
CMYK+1W
5 printheads
1 row
Productivity
- Express
- 19.1 boards/h
- Production
- 13.6 boards/h
- Quality
- 9.4 boards/h
4 × 8 ft board = 32 ft². Print time only — loading is not counted.
$89,192
or from $1,851/mo
This calculation is for illustrative purposes only. Actual monthly payments will vary based on credit. Check with your sales rep for exact monthly payments. Financing provided by Geneva Capital, LLC.
Glass, metal, wood and board
UV ink cures under the lamp instead of soaking in, so a sheet does not have to be coated, absorbent or able to take heat. That is what puts glass, metal and wood on the same bed as foam board — and what a flatbed adds to a shop is usually not more signage, but the jobs it used to buy from somebody else.
- Acrylic
- PVC foam board
- Aluminum composite
- Corrugated plastic
- Styrene
- Polycarbonate
- Wood
- Plywood and MDF
- Metal
- Glass and mirror
- Ceramic tile
- Stone
- Leather
- Canvas
- Paper and board
- Textile
The F3900 powered by our uv-curable inks.
Every machine we supply arrives with LIPLA in it, installed and launched by our own engineers.
- A direct line to the engineer
- Telegram, not a ticket system. The person who answers is the one who knows your machine.
- An answer within 24 hours
- No case number, no dealer authorization, no waiting on an OEM to approve a visit.
- Special terms on engineer time
- Installation, production launch and repair are done on contract terms rather than sold to you as jobs.
- Your machine’s history, held here
- What was installed, what was converted, what was serviced and when. That history is usually what makes the second call shorter than the first.
Technical Specifications
| Print area | 98 × 51 in (2500 × 1300 mm) |
| Print thickness | ≤ 4.7 in (≤ 120 mm) |
| Ink type | UV |
| Ink colors | C, M, Y, K, Lc, Lm, W, V |
| Media | Foam board, acrylic, ACP, glass, wood board |
| Max bearing weight | 10 lb/ft² (50 kg/m², uniform) |
| RIP software | Print Factory / Caldera (optional) |
| Control software | JHF Printer |
| Power | 3-phase 380V, 11.5 kW |
| Air pressure | ≥ 114 psi (≥ 8 kg/cm²) |
| Working environment | 18–28°C, RH 30–70% |
| Machine size | 180 × 82 × 55 in (4560 × 2090 × 1390 mm) |
| Machine weight | 2,980 lb (1,350 kg) |
