- 16 × 24 in (400 × 600 mm)
- Working area
- aviation aluminum vacuum table
- Bed type

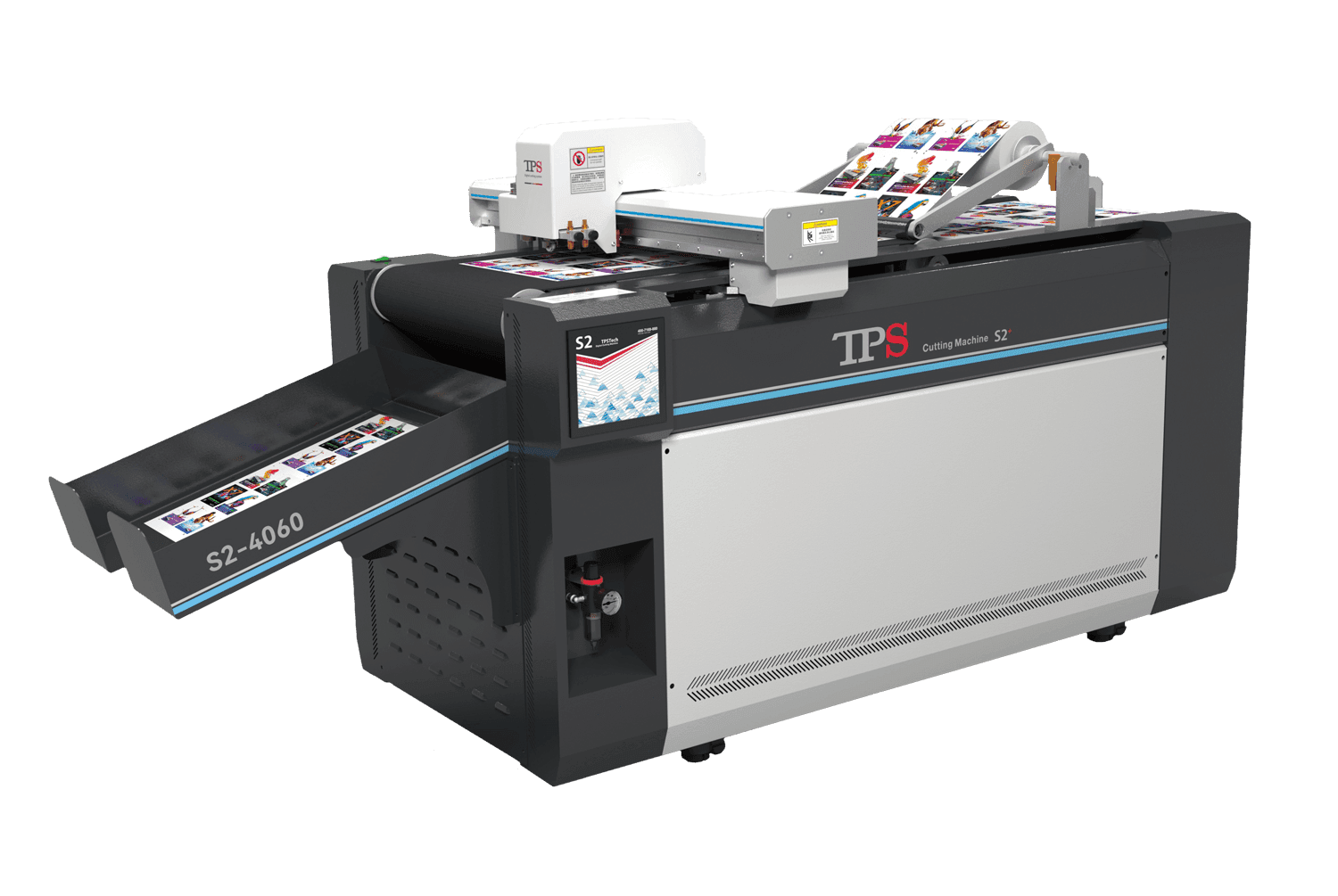

Compact cutter for sample work and short runs.
A compact, floor-standing 16 × 24 in (400 × 600 mm) cutter with auto-feed: material is lifted and separated pneumatically, cut, and carried out on a tracked felt to a collection point. Sized to sit next to a press for samples and short runs rather than to hold a production floor. Cuts with an electric oscillating knife and a drag knife, creases with a creasing wheel, and marks with a plotting pen.
Materials it cuts
Every material here is one the tools this machine takes are rated for. The table says which tool cuts it, how thick it can be, and which printer prints it.

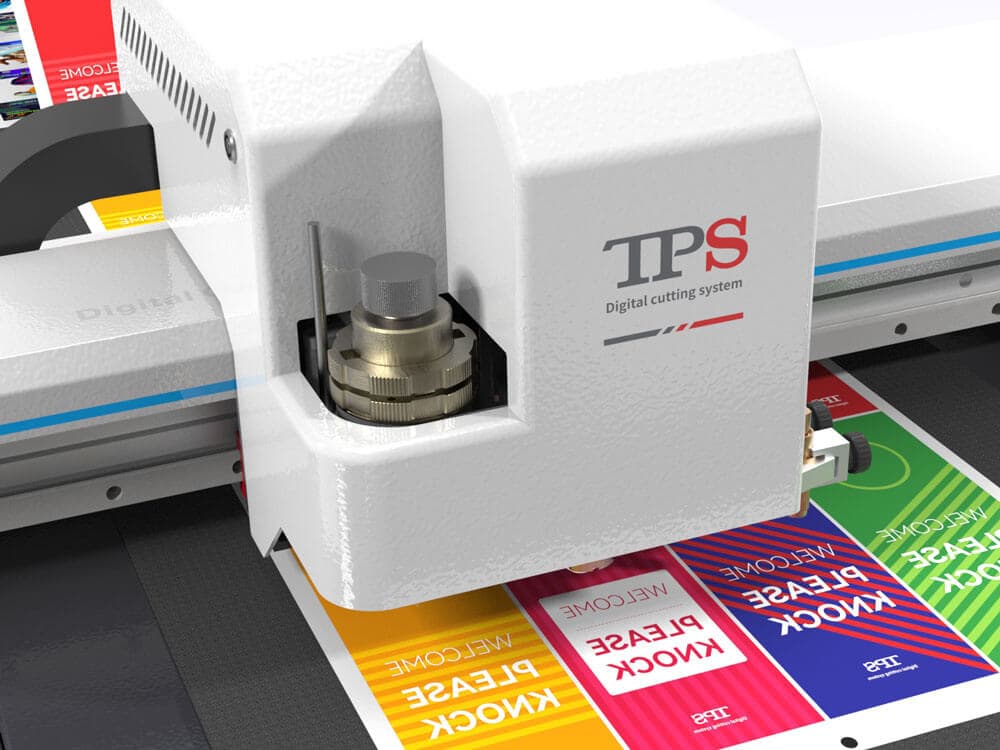

Tool Head System
Designed for flexibility and precision, this universal system allows you to switch between operations seamlessly, making it the perfect solution for small workshops that handle a variety of materials and orders.

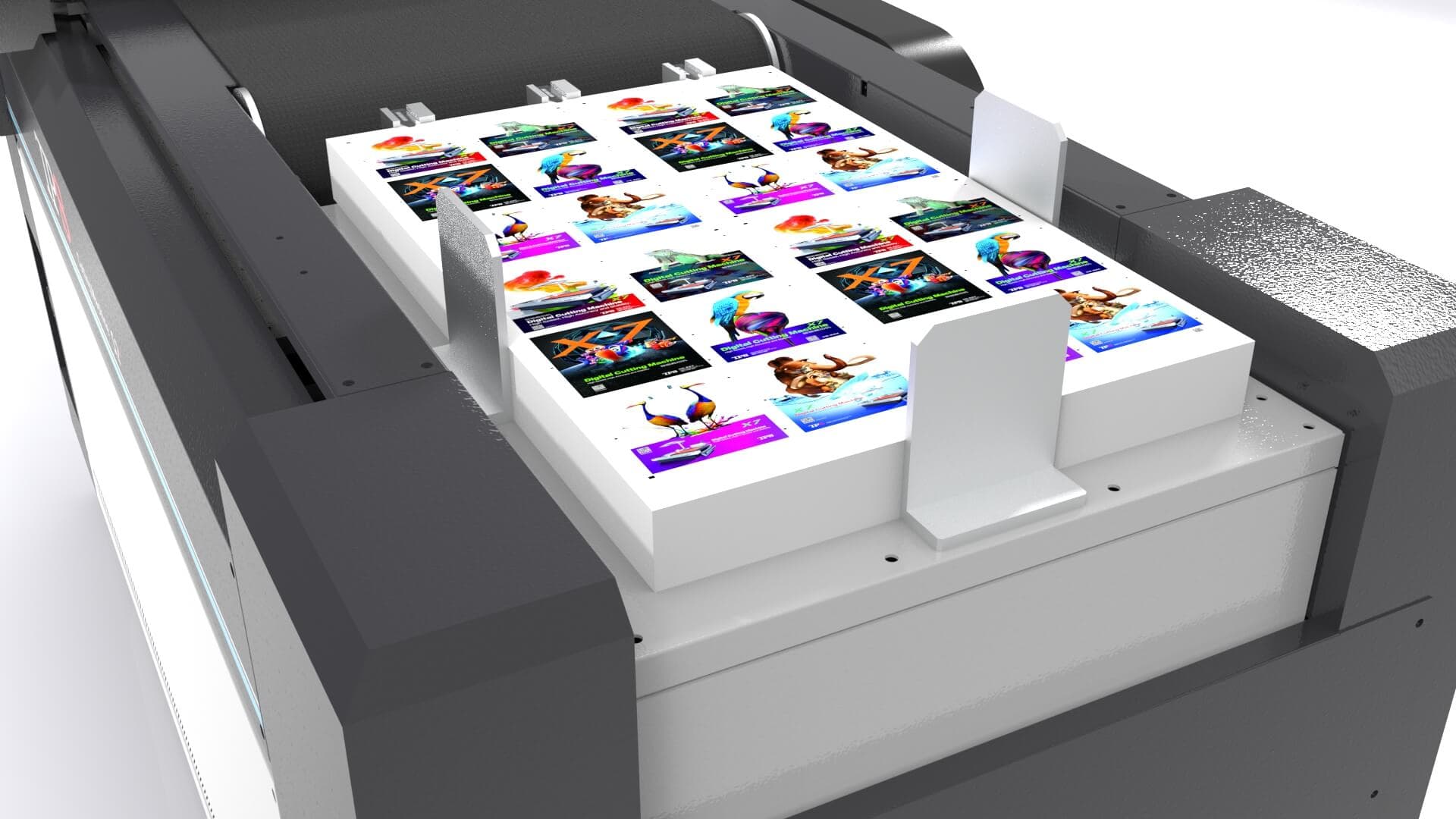

Automatic lifting material device
The device will automatically lift the material to the inductive position of red light. The material arranging device will separate the material by blowing and then convey the material into the processing table for processing by the suspending material sucker, effectively prevent the "material taken" phenomenon during the feeding process.

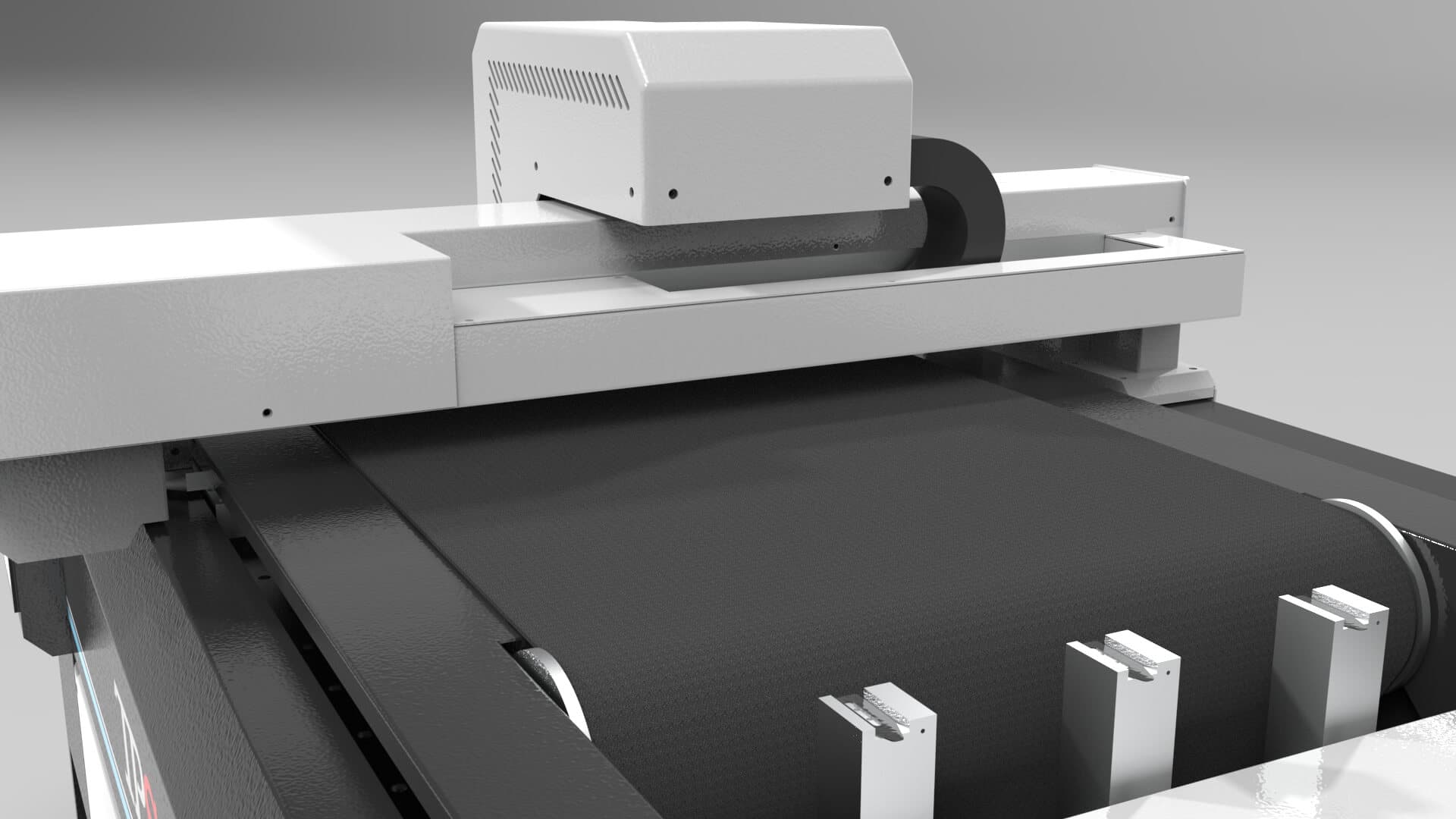

Cutting table
It adopts aviation aluminum vacuum table with strong adsorption to ensure high precisely cutting. The maximum cutting size is 400x600mm. Tracked cutting felt with good breathability, can automatically convey processed materials to the finished product collection box.

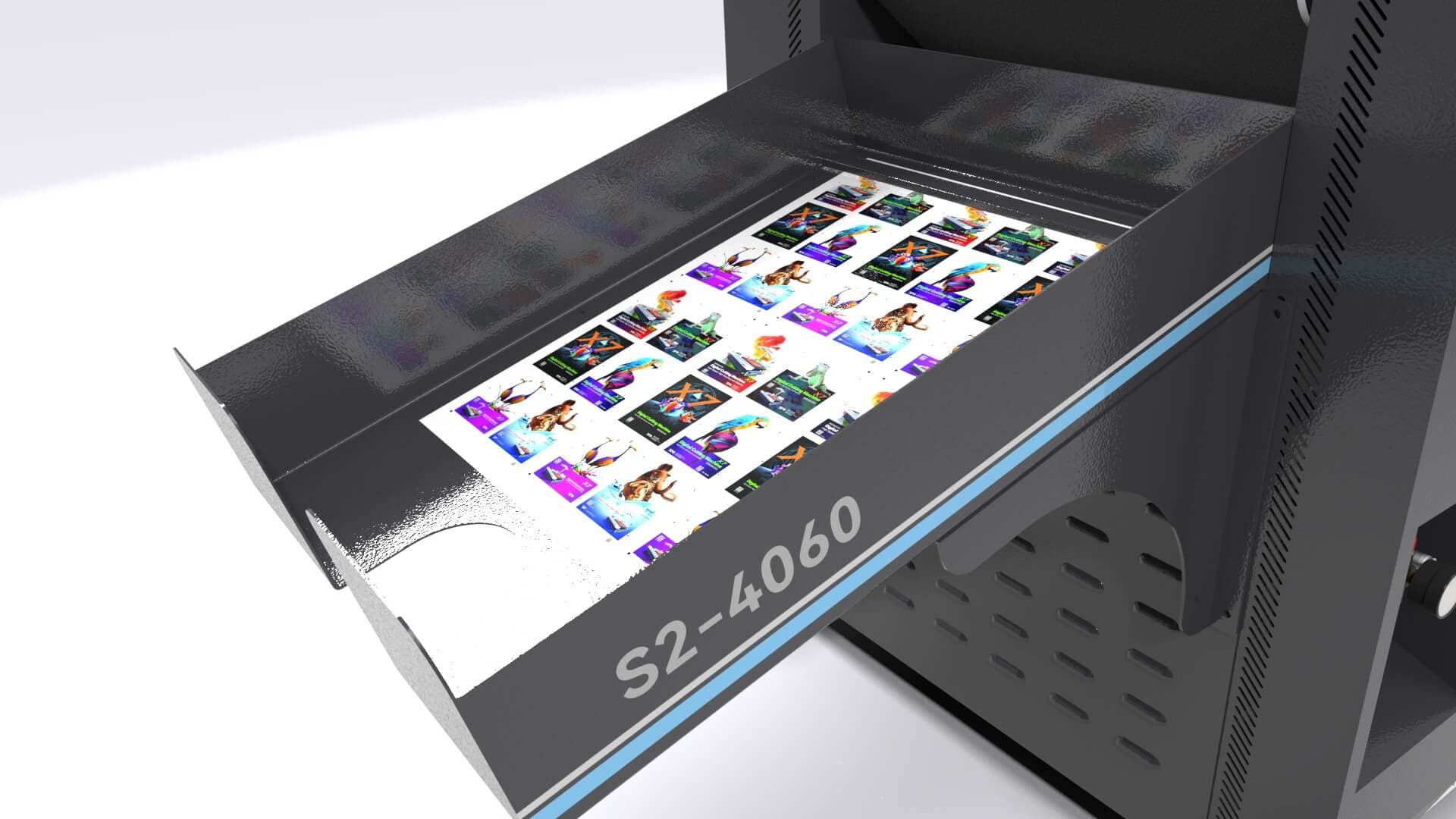

Finished product collection
The collection can gather the finished products. Needless to collect materials manually, it is convenient to collect the finished products automatically when no personal supervises.

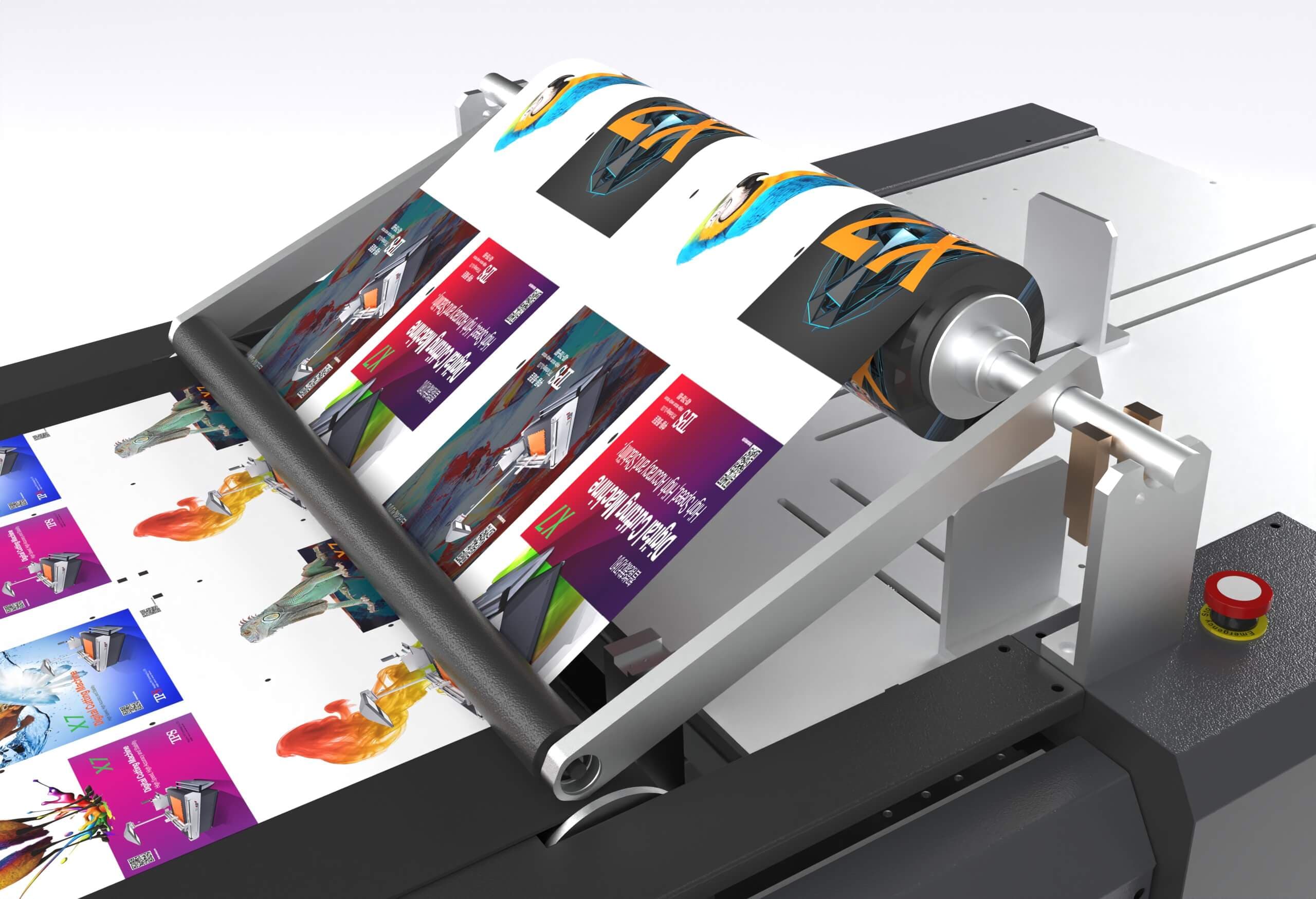

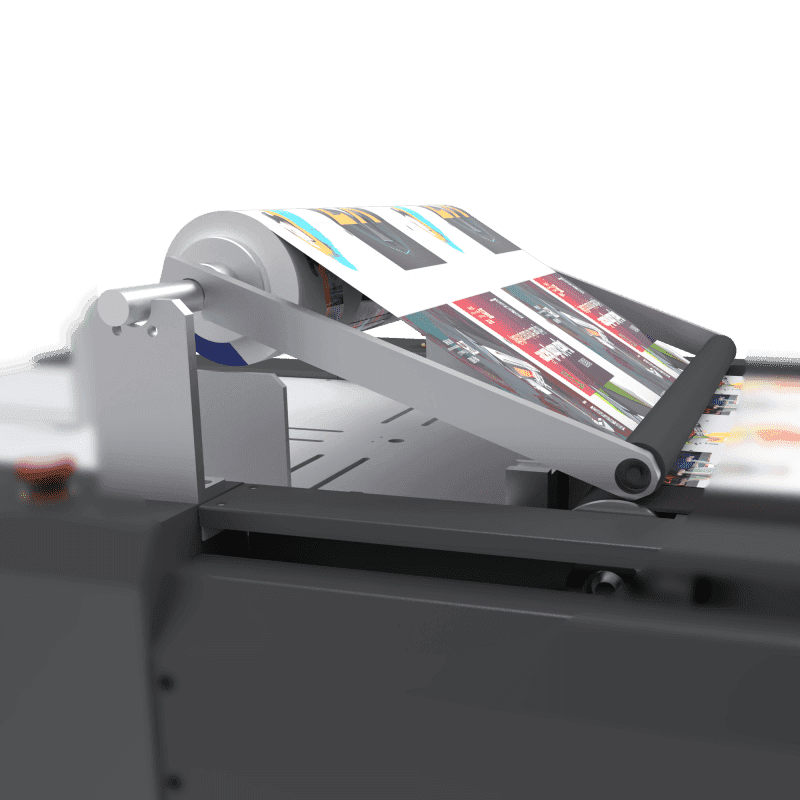

Roll Material Loading Device
A roll material holder makes it easy to automatically feed roll materials for continuous roll to table operations.
Technical Specifications
| Working area | 16 × 24 in (400 × 600 mm) |
| Power Consumption | 3kW |
| Vacuum Pump Power | 1.5kW |
| Voltage | 220V 60Hz/50Hz |
| Max Media Width | 16 × 24 in (400 × 600 mm) |
| Max Media Thickness | Up to 0.4 in (up to 10 mm), depends on material |
| Portal Height | 0.8 in (20 mm) |
| Max Processing Speed | 236 ft/min (72 m/min) |
| Quantity of Servomotors | 5 pcs |
| Weight | 770 lb (350 kg) |
| Dimensions | 94 × 38 × 45 in (2400 × 975 × 1150 mm) |
Tools

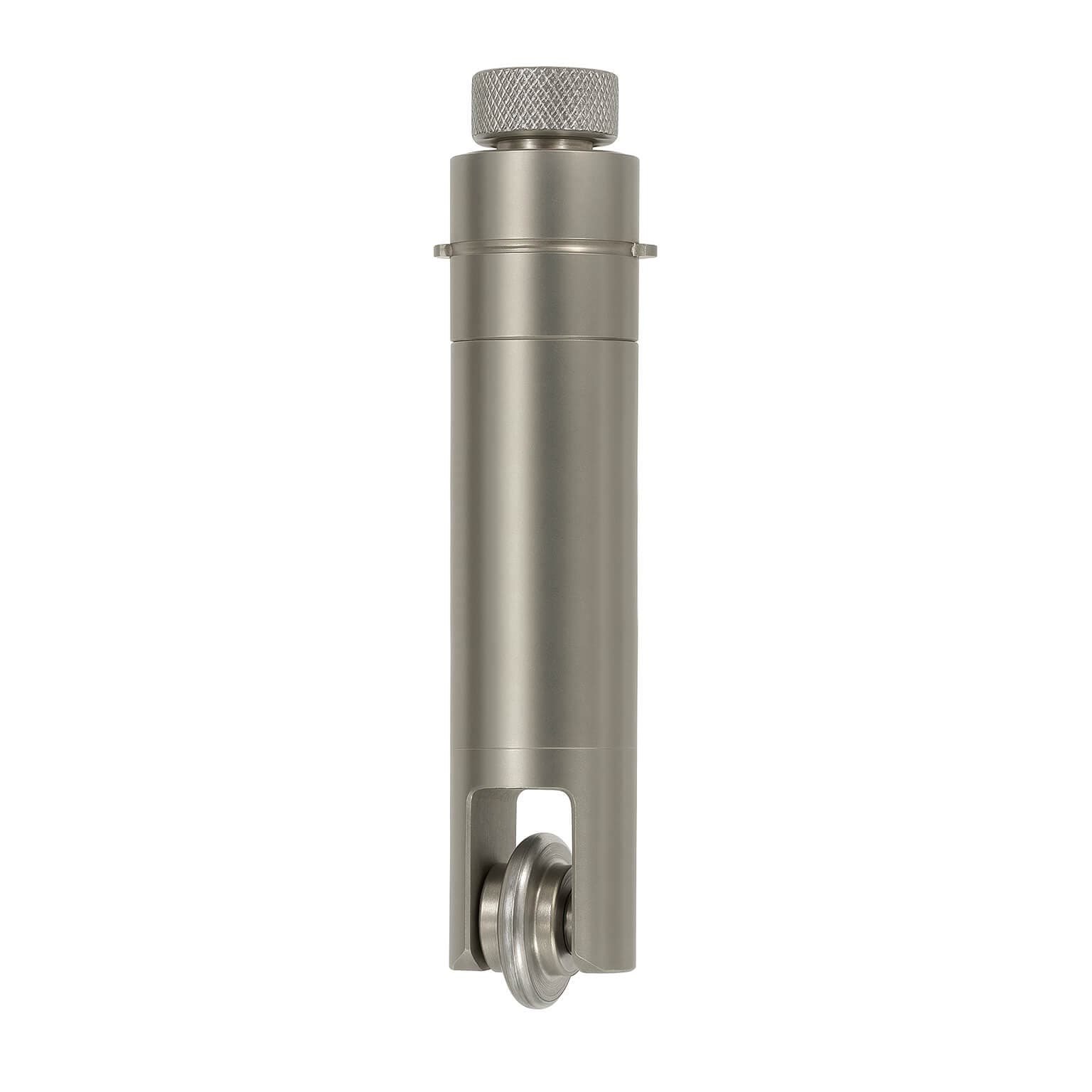

Creasing Wheel Tool
Creases corrugated and non-corrugated cardboard as well as some corrugated plastics, foam boards, and thin plastics.

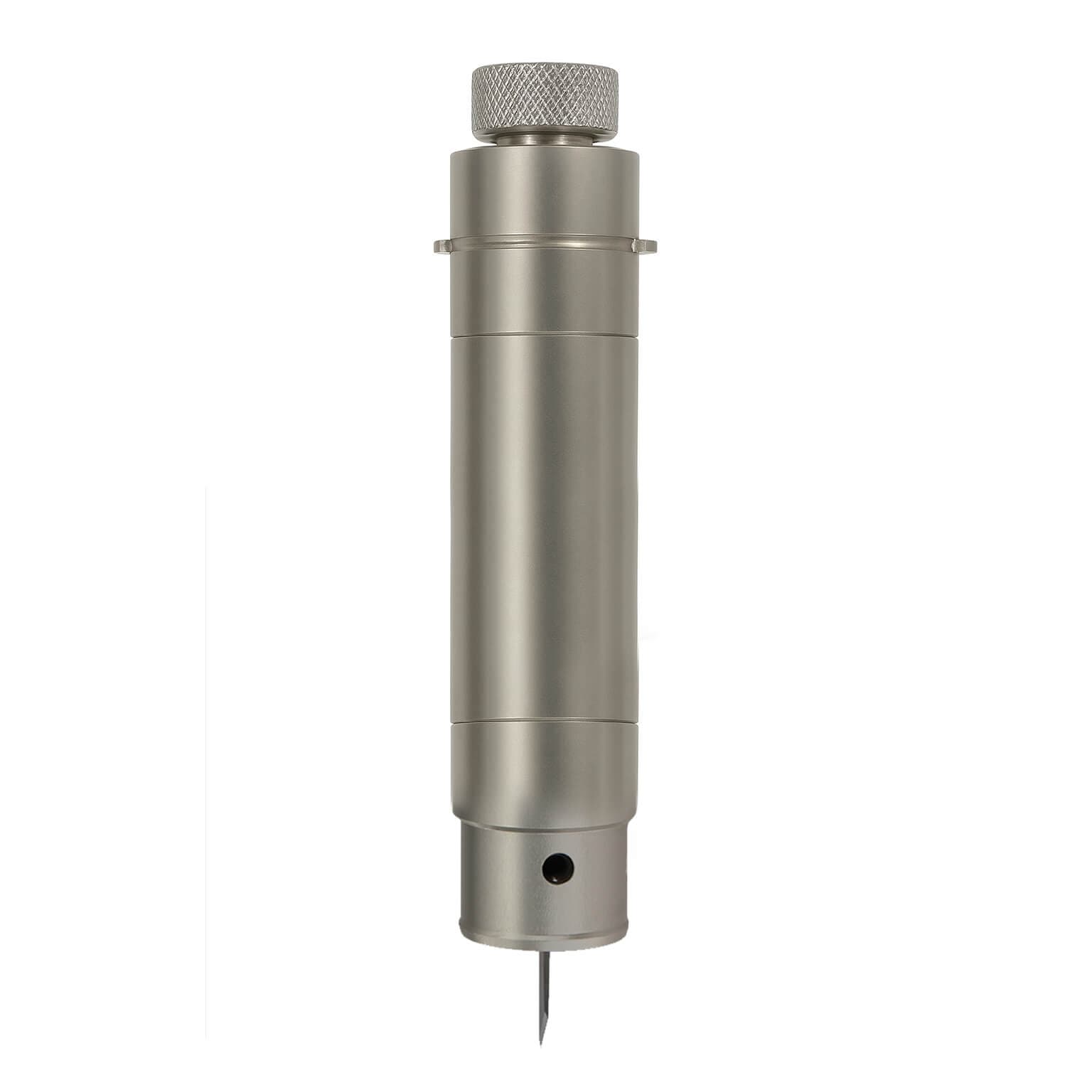

Drag Knife Tool
The drag tool head is not motor-driven, which makes it perfect for through-cutting material at high speed.

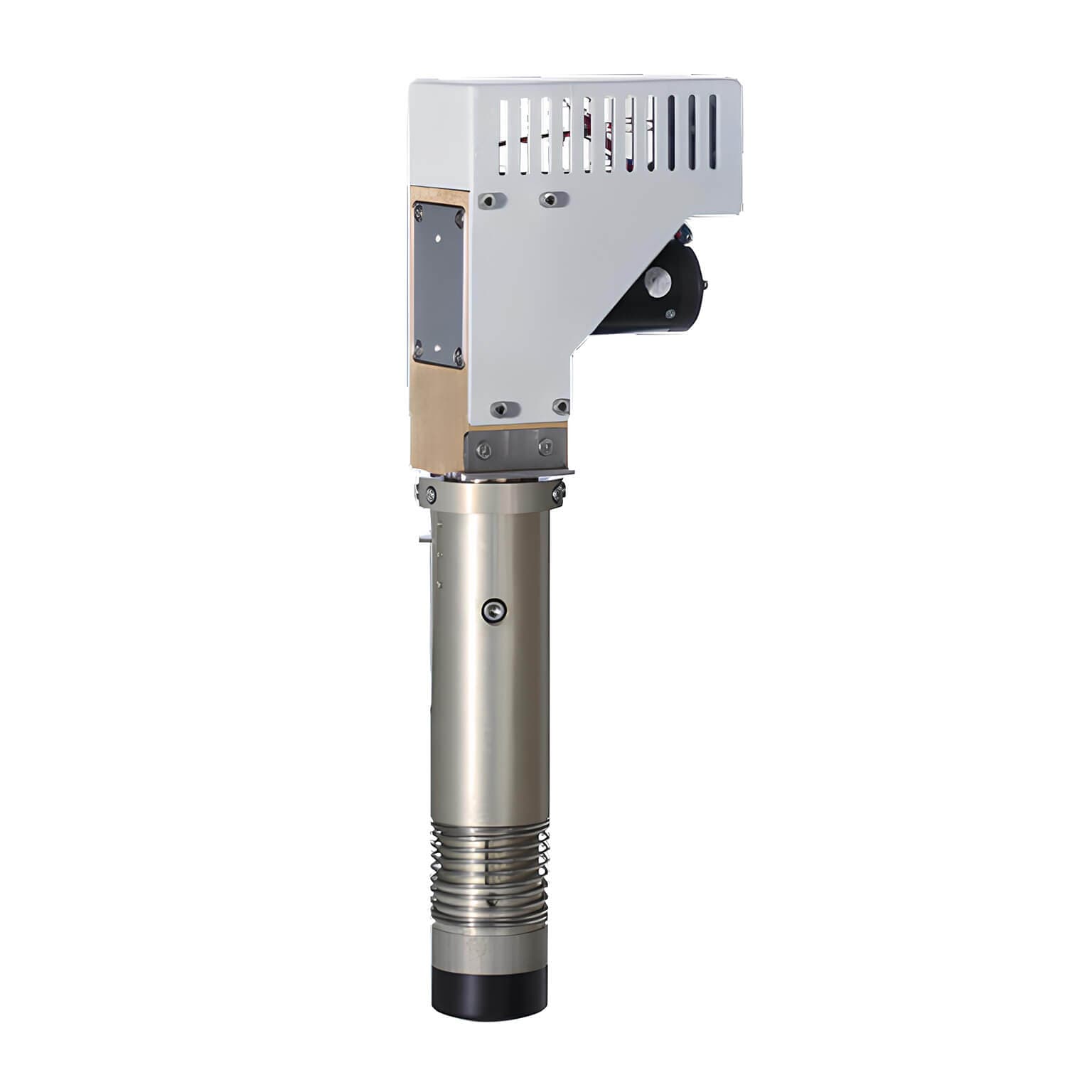

Electric Oscillating Tool
The Electric Oscillating Tool excels at cutting composite material, leather, corrugated paper, and woven fabric.

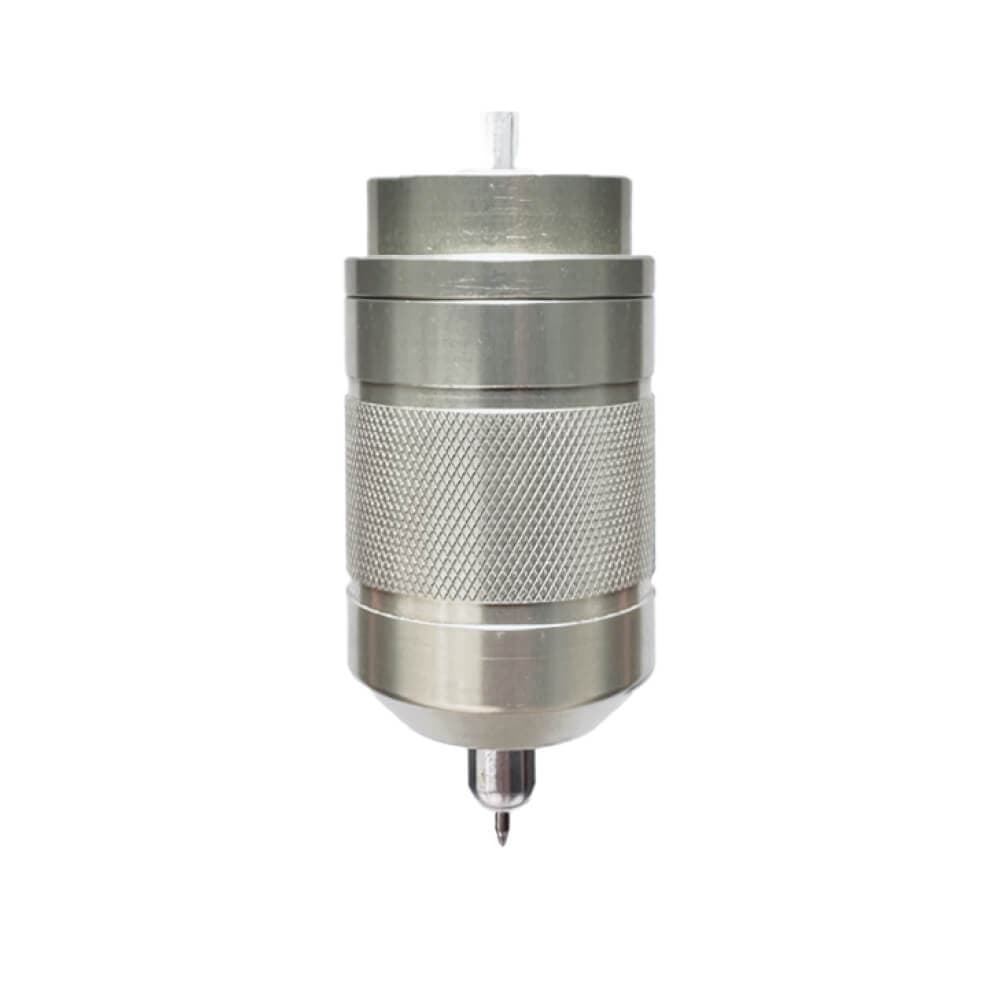

Plotting Pen Tool
A tool for precisely marking/labeling materials including fabric, leather, rubber, and Teflon. The plotting pen is used to draw assembly marks, line symbols, and text.

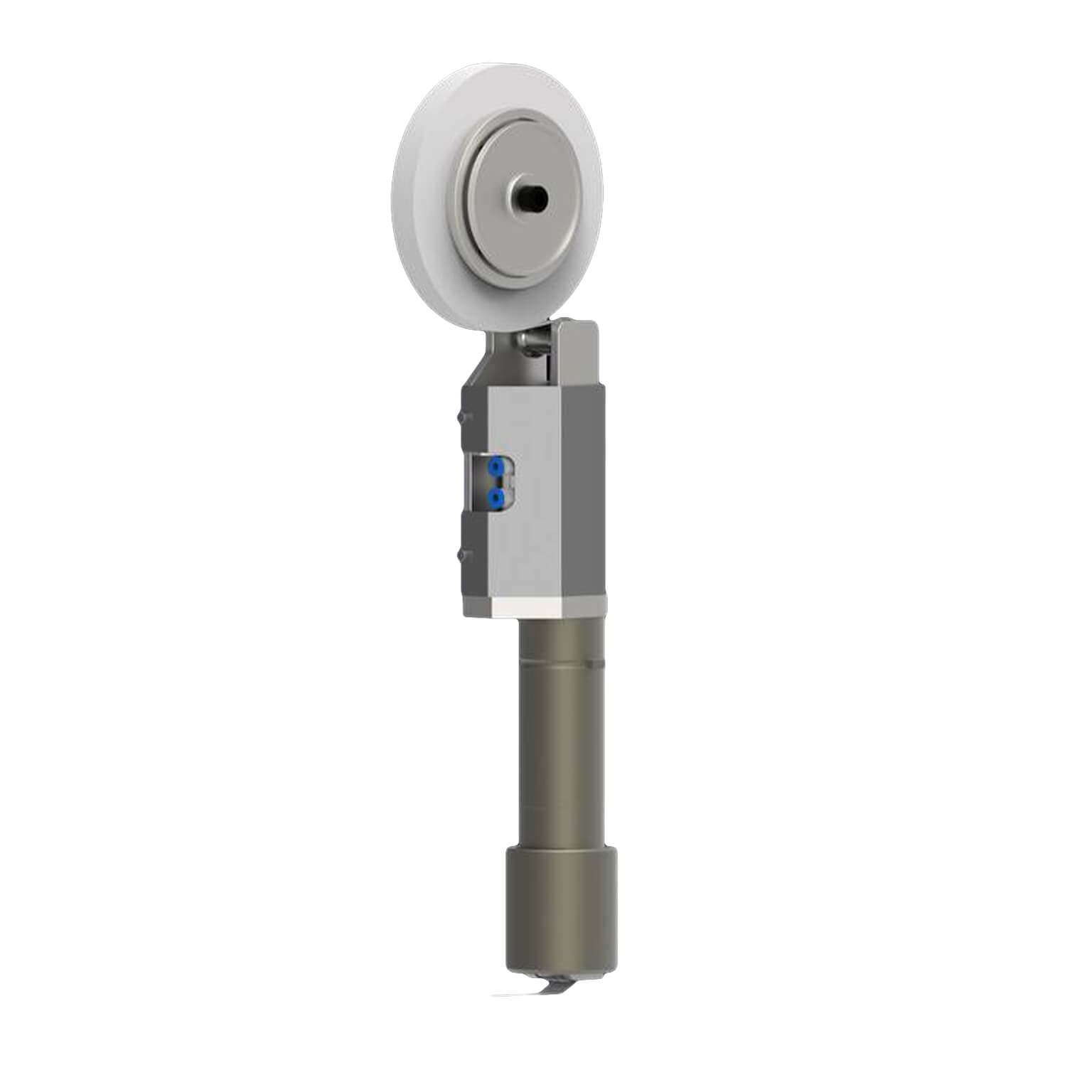

Tape Applicator Tool
The Tape Application Tool automatically applies adhesive tape to various materials, such as cardboard, paper, or film, during the cutting and assembly process.
V-Cut Tool
The V-Cut Tool Head is ideal for producing complex structural designs from Foamcore or sandwich board materials.
