- 51 × 51 in (1300 × 1300 mm)
- Working area
- 1.4 in (35 mm)
- Max media thickness
- 47 in/s (1200 mm/s)
- Max speed

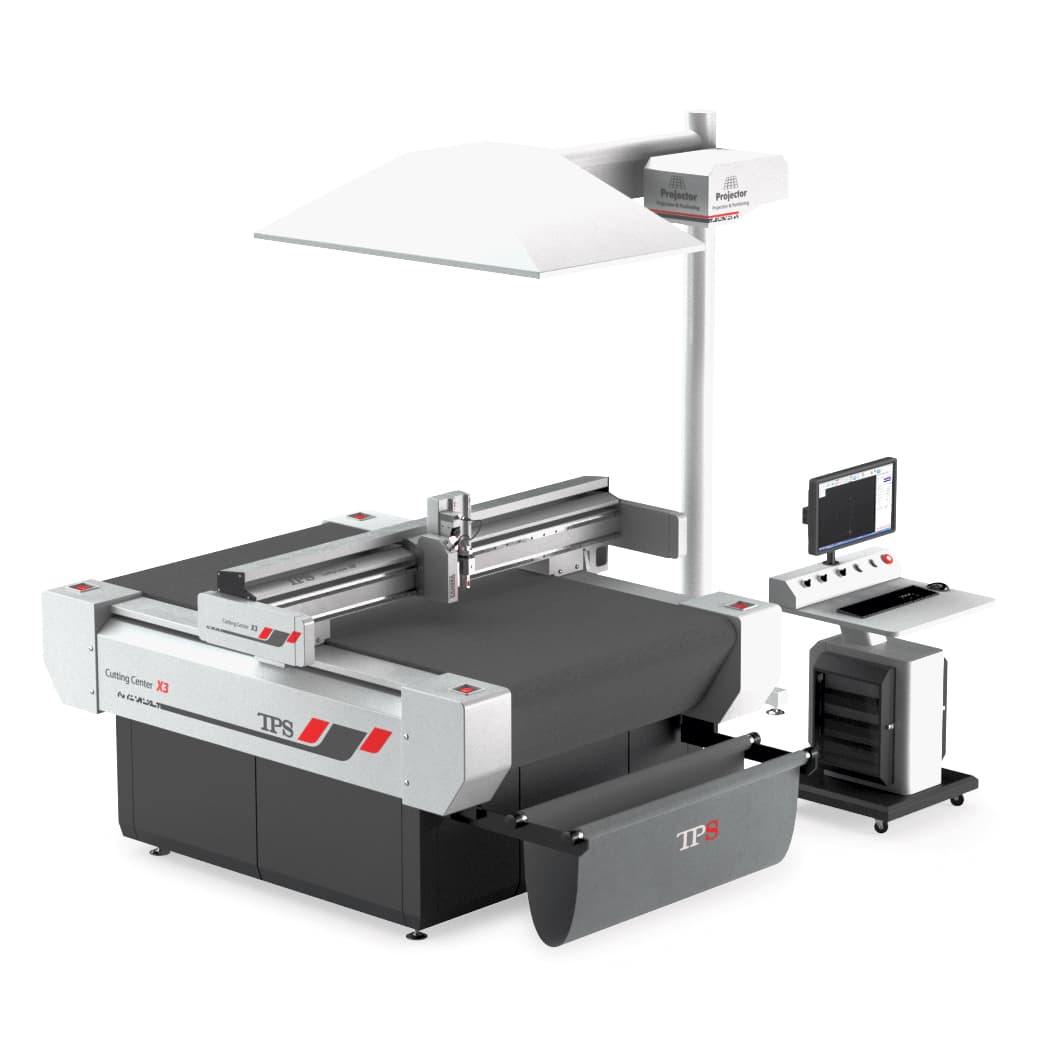

Entry-level flatbed cutter for sample making and short runs.
A 1300 × 1300 mm production table for non-metallic material up to 35 mm thick: full and half cutting, boring, milling, punching, creasing and marking, with tools changed on one universal module. The smallest machine in the X series that still works like a production one.
Powerful and flexible
The TPS X3 allows print service providers to greatly boost the productivity of their postpress departments. This cutting system easily integrates into existing production environments, providing a clear competitive advantage in markets where maximum productivity is required.

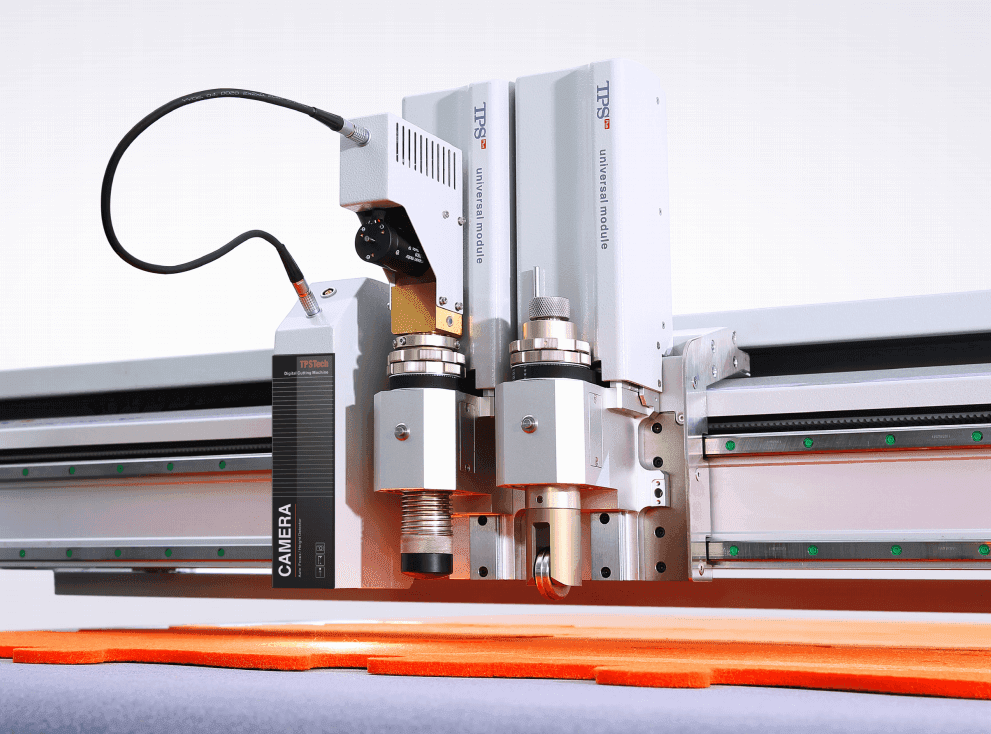

The universal modules and the milling module can be used simultaneously

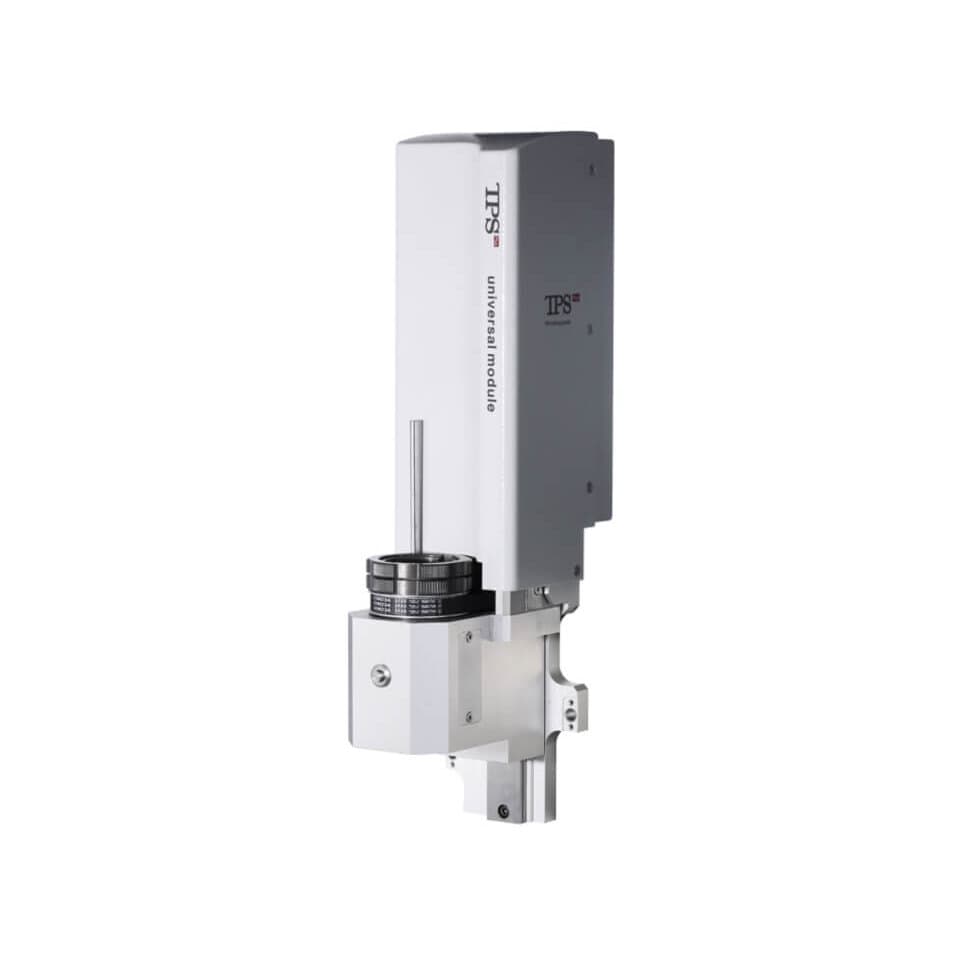

Universal Module
The Universal Module supports a range of interchangeable tools for cutting, creasing, and marking diverse materials like rubber, foam, cardboard, textiles, and plastics—ideal for workshops needing quick tool changes.
Tools
Creasing Wheel Tool
Creases corrugated and non-corrugated cardboard as well as some corrugated plastics, foam boards, and thin plastics.
Drag Knife Tool
The drag tool head is not motor-driven, which makes it perfect for through-cutting material at high speed.
Driven Rotary Tool
This tool is designed to cut a wide variety of flexible materials like UV fabric, carbon fabric, glass fabric, textiles, and more.
Electric Oscillating Tool
The Electric Oscillating Tool excels at cutting composite material, leather, corrugated paper, and woven fabric.
Kiss-Cut Tool
This tool is designed for precise depth, perfect for cutting all kinds of stickers, vinyl, engineering reflective film, and more.
Pneumatic Oscillating Tool
Powerful oscillating tool with extended stroke for cutting tough, dense materials.
Plotting Pen Tool
A tool for precisely marking/labeling materials including fabric, leather, rubber, and Teflon. The plotting pen is used to draw assembly marks, line symbols, and text.

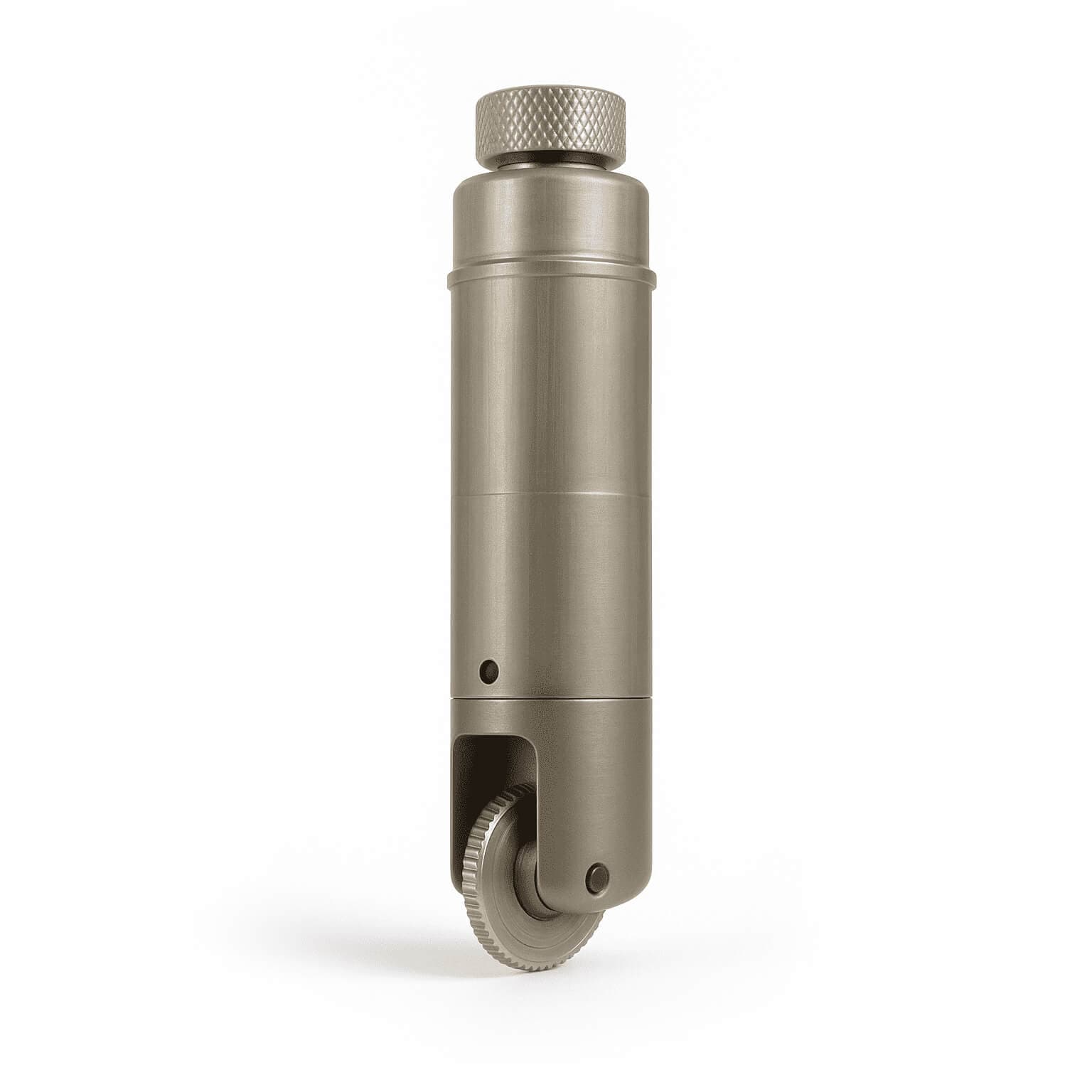

Perforating Tool
Designed for creating perforation lines in cardboard, vinyl, and synthetic sheets.
Tape Applicator Tool
The Tape Application Tool automatically applies adhesive tape to various materials, such as cardboard, paper, or film, during the cutting and assembly process.
V-Cut Tool
The V-Cut Tool Head is ideal for producing complex structural designs from Foamcore or sandwich board materials.

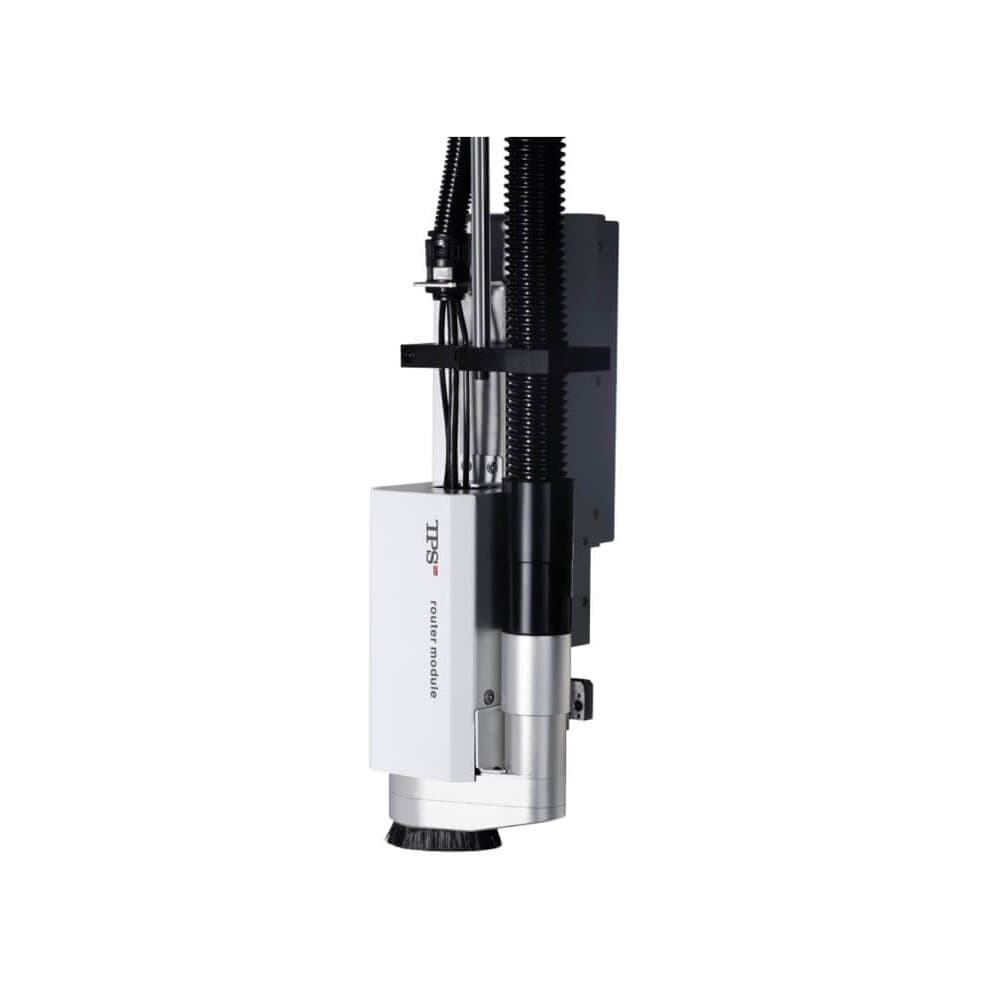

Independent milling system
The router module is a high-performance, high-frequency spindle. Depending on your applications and requirements, versions from 350W to 1800W are available. It supports milling up to 60,000 RPM and is mainly used to cut acrylic, MDF, ABS plates, and other hard materials. The router module includes an imported spindle and a vacuum cleaning system.

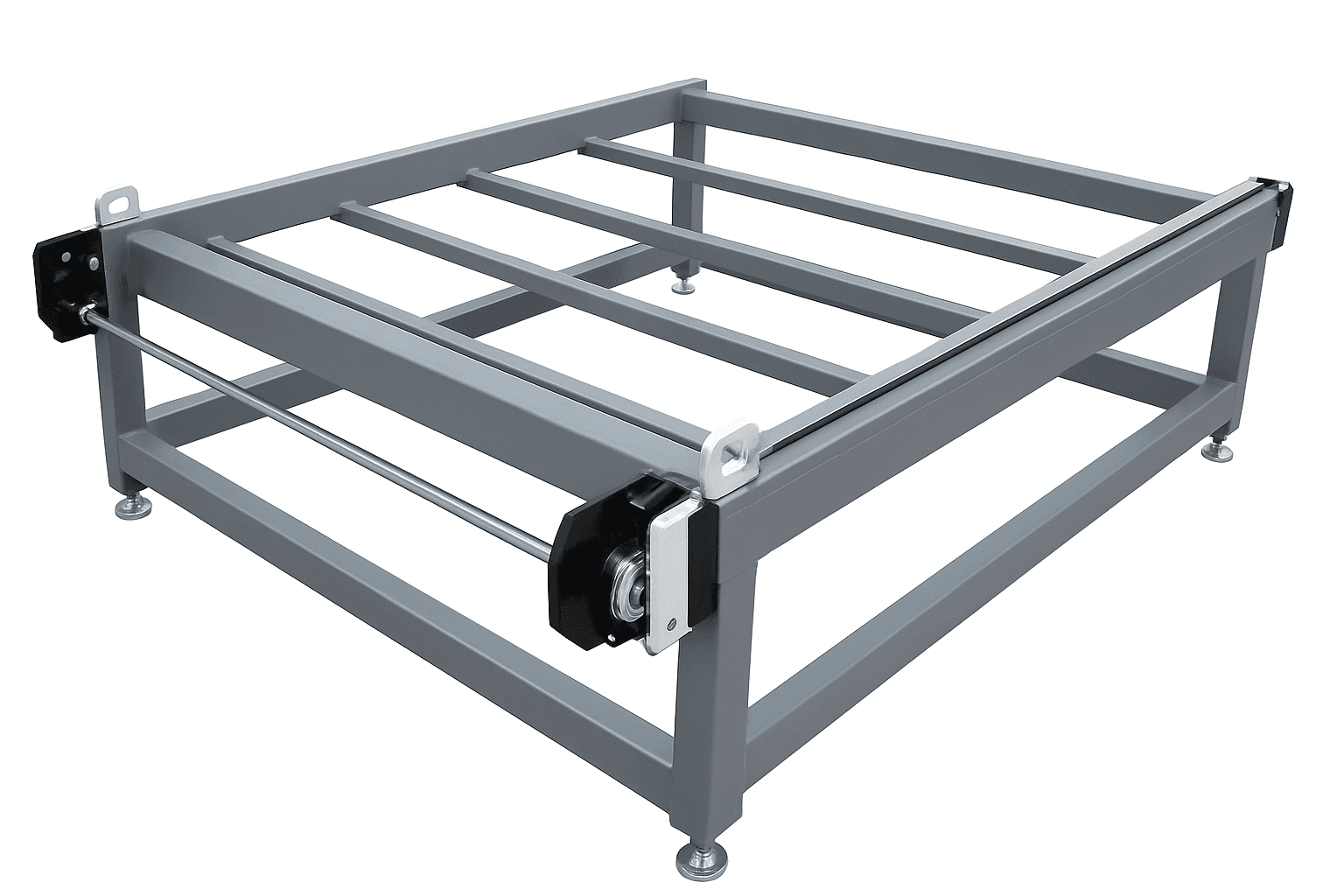

Precision-Welded Frame
The cutter's frame is built to heavy-duty, industrial-grade standards. The assembly process involves pre-welding treatment, machine welding, and post-welding heat sealing under strict quality control for the strongest and most durable frame possible.

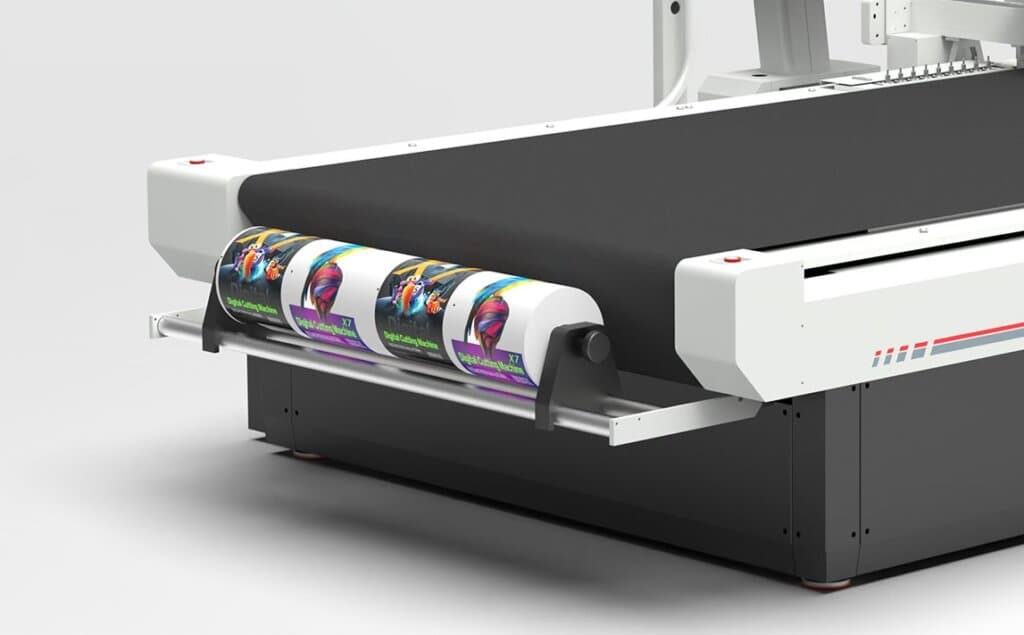

Roll Feed Module
A mechanism for smooth feeding of roll materials designed to improve overall cutting efficiency. The conveyer belt combines flawlessly with the feeder module to streamline production.

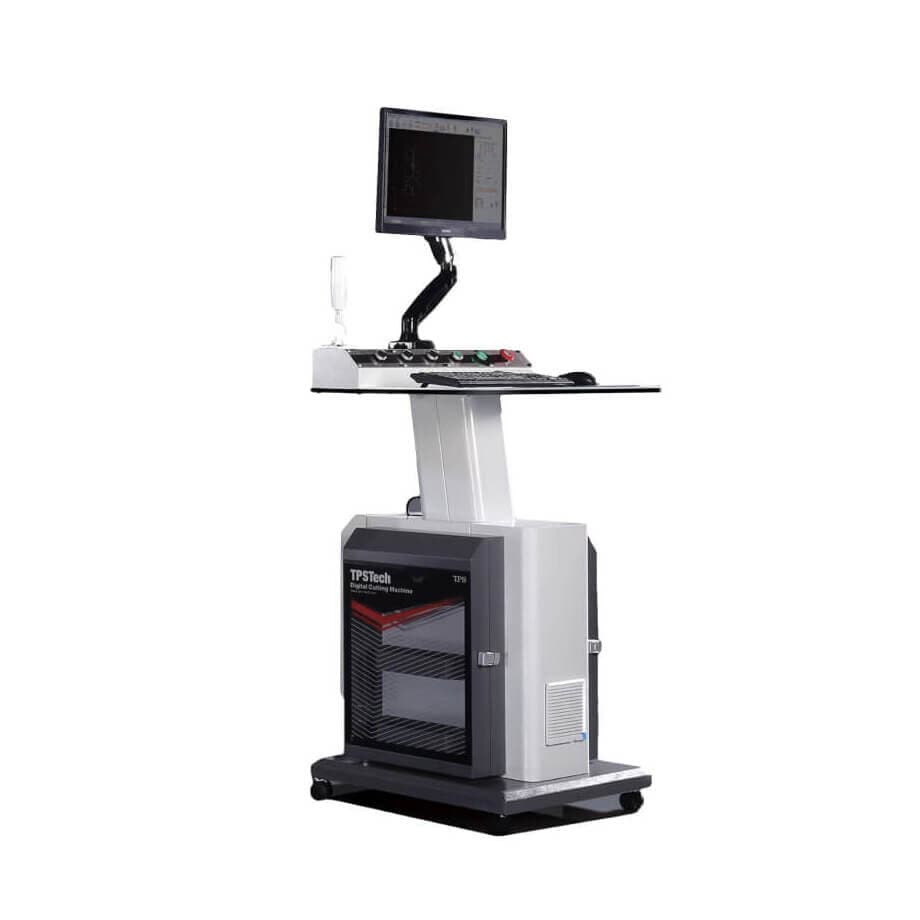

Operator Station
The mobile computer station makes operating the cutter more ergonomic and convenient. It is equipped with an emergency stop button and holders for tool attachments.

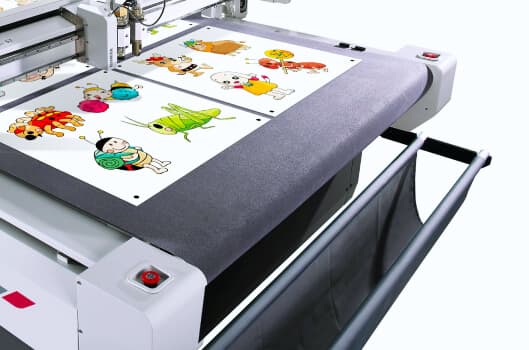

Conveyor Feeding System
The cutting mat is a belt that forms a closed loop around pulleys so it can continually rotate, allowing continuous automatic material feeding and making the cutting length essentially unlimited.
File Management System
The TPS X3 CAM software for the sealing industry offers comprehensive management of processed documents—including file names, times, quantities, materials, batches, and more. It can generate barcodes or QR codes, enabling fast retrieval of files by scanning. This streamlines future repeat processing, while historic file management significantly simplifies user operations.
Technical Specifications
| Working area | 51 × 51 in (1300 × 1300 mm) |
| Power Consumption | 2.5kW |
| Vacuum Pump Power | 7.5/8.6kW |
| Voltage | 380V |
| Max Media Width | 59 × 59 in (1500 × 1500 mm) |
| Max Media Thickness | 1.4 in (35 mm) |
| Portal Height | 2.4 in (60 mm) |
| Max Processing Speed | 236 ft/min (72 m/min) |
| Quantity of Servomotors | 6pcs for 2 cutting heads, 7pcs for 3 cutting heads |
| Net Weight | 3,310 lb (1,500 kg) |
| Dimensions | 159 × 129 × 104 in (4040 × 3273 × 2630 mm) |
Working Area
The TPS X3 has a working area of 1300 mm x 1300 mm, which is large enough to handle most of the cutting and milling needs of small and medium-sized businesses.
2-Zone Vacuum Bed
Configure your TPS X3
Universal Module
A Universal Tool Holder accommodates a wide range of cutting, creasing, and drawing tools and allows operators to quickly switch modules.
Router module
One per machine — the modules share a single mount.
