- 51 × 39 in (1300 × 1000 mm)
- Working area
- aviation aluminum vacuum table
- Bed type

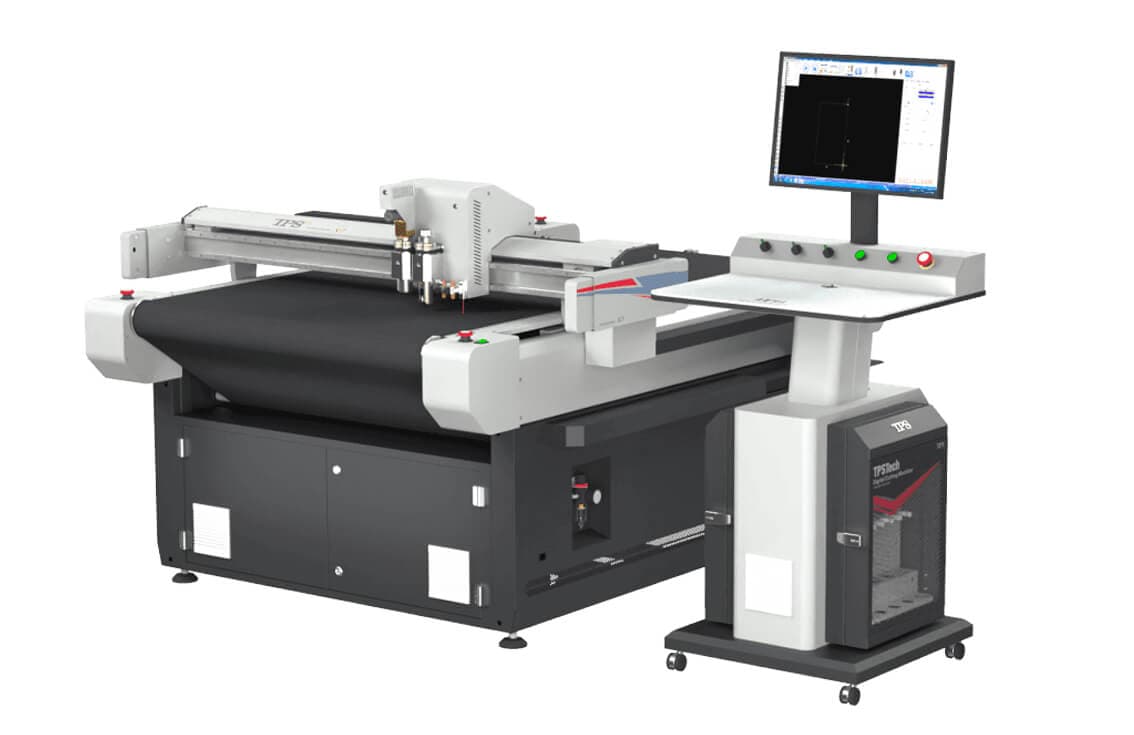

The largest S-series bed: 1300 × 1000 mm.
Large sheets and panels go through in one pass, with the same auto-feed, aviation-aluminum vacuum bed and 0.1 mm camera registration as the smaller S machines. Carries the oscillating, rotary and drag knives with creasing and V-cut, on a 51 × 39 in conveyor bed.
Used for
Packaging
Cut-and-crease samples and short runs in corrugated and carton board, and foam inserts.
Signs and displays
Print a board on a UV flatbed, then cut foam board, acrylic and vinyl to the printed marks.
Gaskets, composites and technical textiles
Rubber and gasket sheet, carbon and glass fabric, felt.
Materials it cuts
Every material here is one the tools this machine takes are rated for. The table says which tool cuts it, how thick it can be, and which printer prints it.

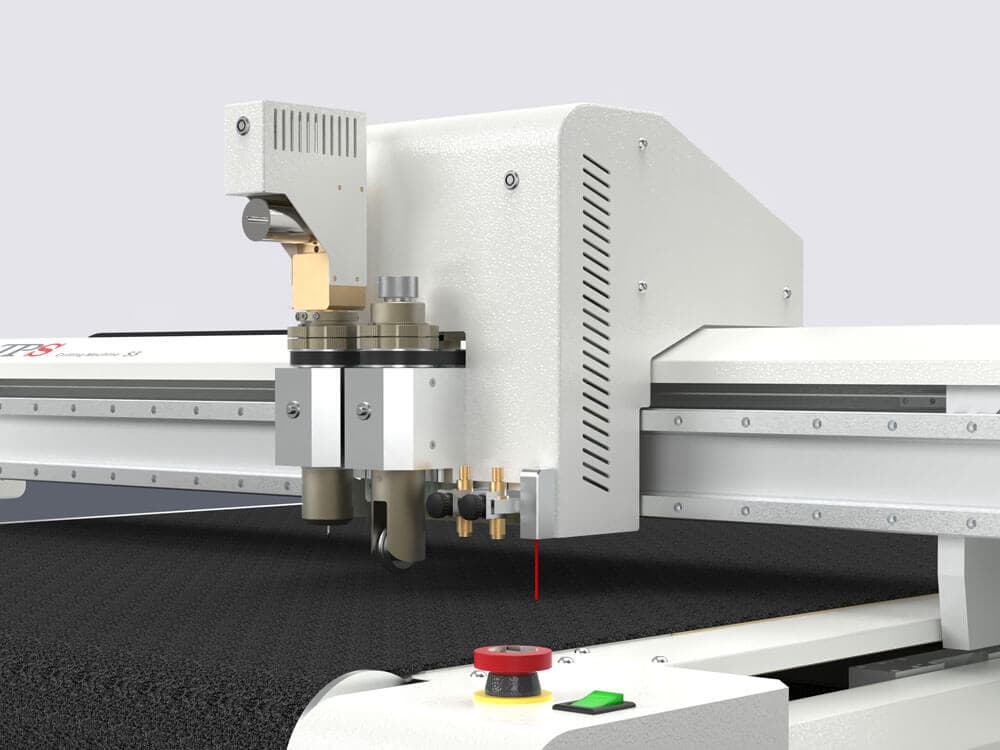

Tool Head System
Designed for flexibility and precision, this universal system allows you to switch between operations seamlessly, making it the perfect solution for small workshops that handle a variety of materials and orders.
Technical Specifications
| Working area | 51 × 39 in (1300 × 1000 mm) |
| Power Consumption | 5kW |
| Vacuum Pump Power | 1.5kW |
| Voltage | 220V 60Hz/50Hz |
| Max Media Width | 51 × 39 in (1300 × 1000 mm) |
| Max Media Thickness | < 0.4 in (< 10 mm) |
| Portal Height | 2.4 in (60 mm) |
| Max Processing Speed | 236 ft/min (72 m/min) |
| Quantity of Servomotors | 6 pcs |
| Net Weight | 1,460 lb (660 kg) |
| Dimensions | 87 × 67 × 49 in (2200 × 1710 × 1250 mm) |
Tools
Creasing Wheel Tool
Creases corrugated and non-corrugated cardboard as well as some corrugated plastics, foam boards, and thin plastics.
Drag Knife Tool
The drag tool head is not motor-driven, which makes it perfect for through-cutting material at high speed.

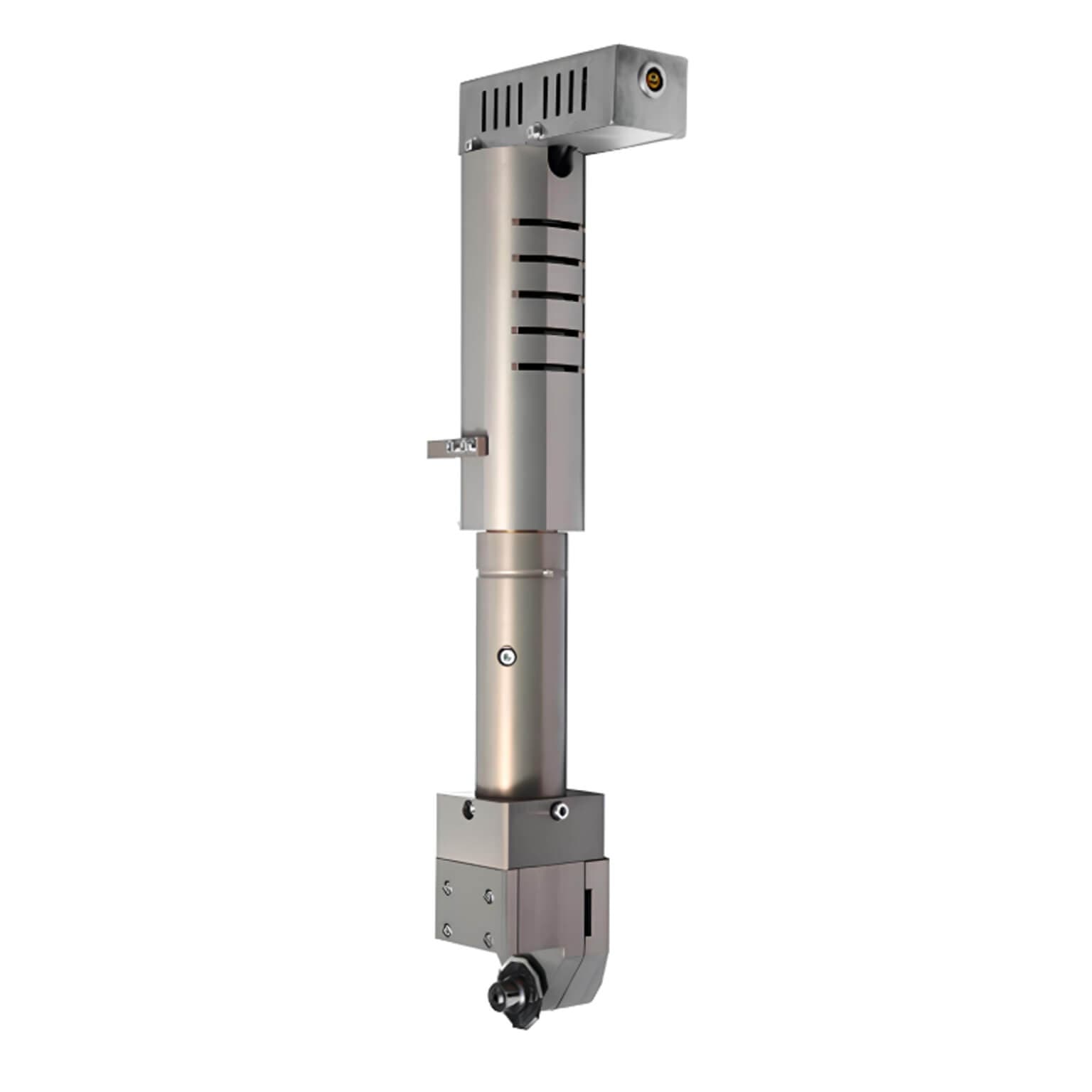

Driven Rotary Tool
This tool is designed to cut a wide variety of flexible materials like UV fabric, carbon fabric, glass fabric, textiles, and more.
Electric Oscillating Tool
The Electric Oscillating Tool excels at cutting composite material, leather, corrugated paper, and woven fabric.
Pneumatic Oscillating Tool
Powerful oscillating tool with extended stroke for cutting tough, dense materials.
Plotting Pen Tool
A tool for precisely marking/labeling materials including fabric, leather, rubber, and Teflon. The plotting pen is used to draw assembly marks, line symbols, and text.
Tape Applicator Tool
The Tape Application Tool automatically applies adhesive tape to various materials, such as cardboard, paper, or film, during the cutting and assembly process.
V-Cut Tool
The V-Cut Tool Head is ideal for producing complex structural designs from Foamcore or sandwich board materials.
Configure your TPS S3
Tools
Options
Your configuration
- Base machine
- $32,623
Nothing selected yet.
Buy it outright
We confirm availability, lead time and installation, and send a written quote for exactly this list.
Financing
Pay for it monthly
Set a down payment and a term to see what this configuration costs a month.
Down payment
Term
$32,623 financed at an assumed 9%
This calculation is for illustrative purposes only. Actual monthly payments will vary based on credit. Check with your sales rep for exact monthly payments. Financing provided by Geneva Capital, LLC.
Still have questions?
An engineer will answer them — the tooling, the materials, the install.
