- up to 49.4 boards/h or 1582 ft²/h
- Print speed
- 126 in (3200 mm)
- Print width
- rigid + rolled (hybrid)
- Media
- up to 18, CMYK+LcLm, or CMYK+W
- Channels
- Kyocera KJ4A
- Printhead
- up to 2 in (50 mm)
- Media thickness
- Print Factory / Caldera RIP
- Software

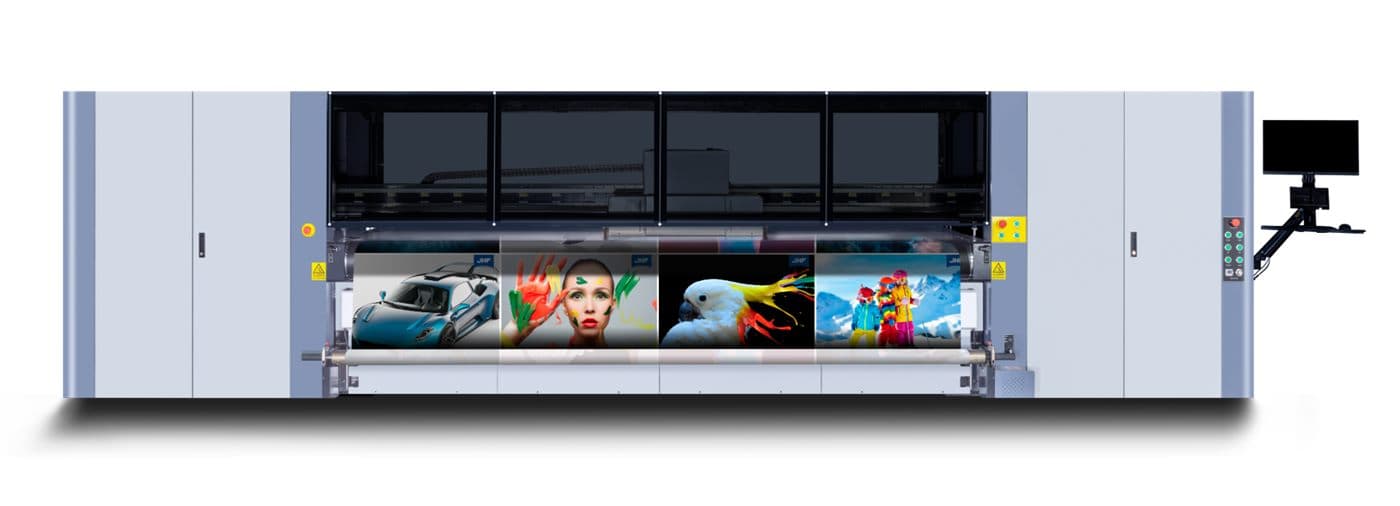

Hybrid UV printer: rigid boards and roll media on one machine.
A 3200 mm hybrid that takes rigid boards up to 50 mm thick and roll media on the same machine, so a shop running both does not need two printers. Automatic thickness detection sets the head height per job, and texture printing stacks layers into three-dimensional relief for art reproduction and decor.
Features
Printhead configurations
Explore different printhead layouts and find the configuration that fits your production needs.
CMYK
4 printheads
1 row
Productivity
- High speed
- 21.2 boards/h
- Production
- 15.1 boards/h
- Fine
- 10.4 boards/h
4 × 8 ft board = 32 ft². Print time only — loading is not counted.
$128,511
or from $2,667/mo
This calculation is for illustrative purposes only. Actual monthly payments will vary based on credit. Check with your sales rep for exact monthly payments. Financing provided by Geneva Capital, LLC.
Rigid board and roll media
A hybrid takes the sheet a flatbed takes and the roll a roll-to-roll takes, so a shop running both is not running two printers or booking two operators. The ink is the same either way: it cures as it lands, which is why banner vinyl in the morning and acrylic in the afternoon are the same setup with a different feed.
- Banner PVC
- Mesh banner
- Self-adhesive vinyl
- Backlit film
- Blockout
- Textile and soft signage
- Acrylic
- PVC foam board
- Aluminum composite
- Corrugated plastic
- Styrene
- Wood and MDF
- Metal
- Canvas
- Paper and board
The M3300 powered by our uv-curable inks.
Every machine we supply arrives with LIPLA in it, installed and launched by our own engineers.
- A direct line to the engineer
- Telegram, not a ticket system. The person who answers is the one who knows your machine.
- An answer within 24 hours
- No case number, no dealer authorization, no waiting on an OEM to approve a visit.
- Special terms on engineer time
- Installation, production launch and repair are done on contract terms rather than sold to you as jobs.
- Your machine’s history, held here
- What was installed, what was converted, what was serviced and when. That history is usually what makes the second call shorter than the first.
Technical Specifications
| Print width | 126 in (3200 mm) |
| Printing thickness | ≤ 2 in (≤ 50 mm) |
| Ink type | UV |
| Ink colors | C, M, Y, K, Lc, Lm, W |
| Flexible media | 3P cloth, PE film, PVC banner, textile fabrics |
| Rigid media | Corrugated board, PC board, acrylic board, glass |
| RIP software | Print Factory / Caldera (optional) |
| Control software | JHF Printer |
| Working environment | 18–28°C, RH 30–70% |
| Power | 3-phase 380V, 11.5 kW |
| Machine size | 248 × 69 × 68 in (6300 × 1750 × 1720 mm) |
| Machine weight | 4,300 lb (1,950 kg) |
