- 197 in (5000 mm)
- Print width
- up to 35.3 boards/h or 1130 ft²/h
- Print speed
- Kyocera KJ4A
- Printhead
- PVC banner, film, fabric, mesh (roll)
- Media

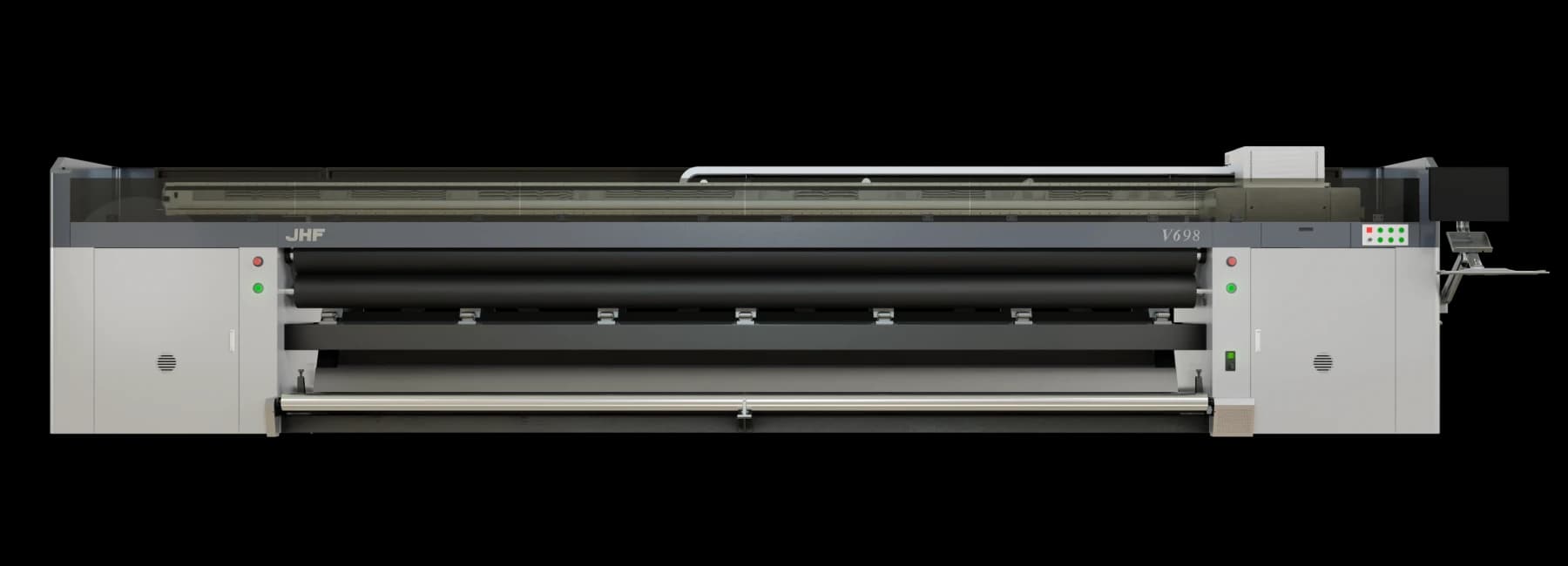

Industrial UV roll-to-roll printer, 197 inches wide.
A 5 m roll-to-roll UV printer with optional six-color heads, for billboard-width runs that a narrower machine would print in panels and seam. Handles PVC banner, film, fabric and mesh, including thin and heat-sensitive stock.
Features
Printhead configurations
Explore different printhead layouts and find the configuration that fits your production needs.
CMYK+LcLm
6 printheads
1 row
Productivity
- High speed
- 21.2 boards/h
- Production
- 15.1 boards/h
- Fine
- 10.4 boards/h
4 × 8 ft board = 32 ft². Print time only — loading is not counted.
$160,969
or from $3,341/mo
This calculation is for illustrative purposes only. Actual monthly payments will vary based on credit. Check with your sales rep for exact monthly payments. Financing provided by Geneva Capital, LLC.
Banner, vinyl, film and textile
UV ink cures as it lands, so the media needs no coating to hold the image and nothing goes through a heater to dry it. A roll leaves the machine finished — ready to cut, weld or hang the same hour, with no outgassing to wait out before lamination.
- Banner PVC
- Mesh banner
- Blockout
- Self-adhesive vinyl
- Backlit film
- Window film
- Wallcovering
- Synthetic paper
- Coated paper
- Canvas
- Textile and soft signage
- Coated fabric
The V698 powered by our uv-curable inks.
Every machine we supply arrives with LIPLA in it, installed and launched by our own engineers.
- A direct line to the engineer
- Telegram, not a ticket system. The person who answers is the one who knows your machine.
- An answer within 24 hours
- No case number, no dealer authorization, no waiting on an OEM to approve a visit.
- Special terms on engineer time
- Installation, production launch and repair are done on contract terms rather than sold to you as jobs.
- Your machine’s history, held here
- What was installed, what was converted, what was serviced and when. That history is usually what makes the second call shorter than the first.
Technical Specifications
| Print width | 197 in (5000 mm) |
| Printhead | Kyocera KJ4A |
| Ink type | UV ink |
| Ink color | C, M, Y, K, Lc, Lm, W |
| Media type | PVC banner, PET film, backlit & frontlit fabric, PE film, mesh, etc. |
| RIP software | Print Factory / Caldera (optional) |
| Control software | JHF Printer |
| Working environment | 20–30°C, RH 40–70% |
| Air pressure | 0.8–1 MPa |
| Power requirements | 3 phase, 380V, 12 kW |
| Machine size | 345 × 59 × 71 in (8760 × 1495 × 1795 mm) |
| Machine weight | 8,600 lb (3,900 kg) |
Still have questions?
An engineer will answer them — the configuration, the materials, the install.
