- 98 × 126 in (2500 × 3200 mm)
- Working area
- 71 in/s (1800 mm/s)
- Max speed
- 2 in (50 mm)
- Max media thickness

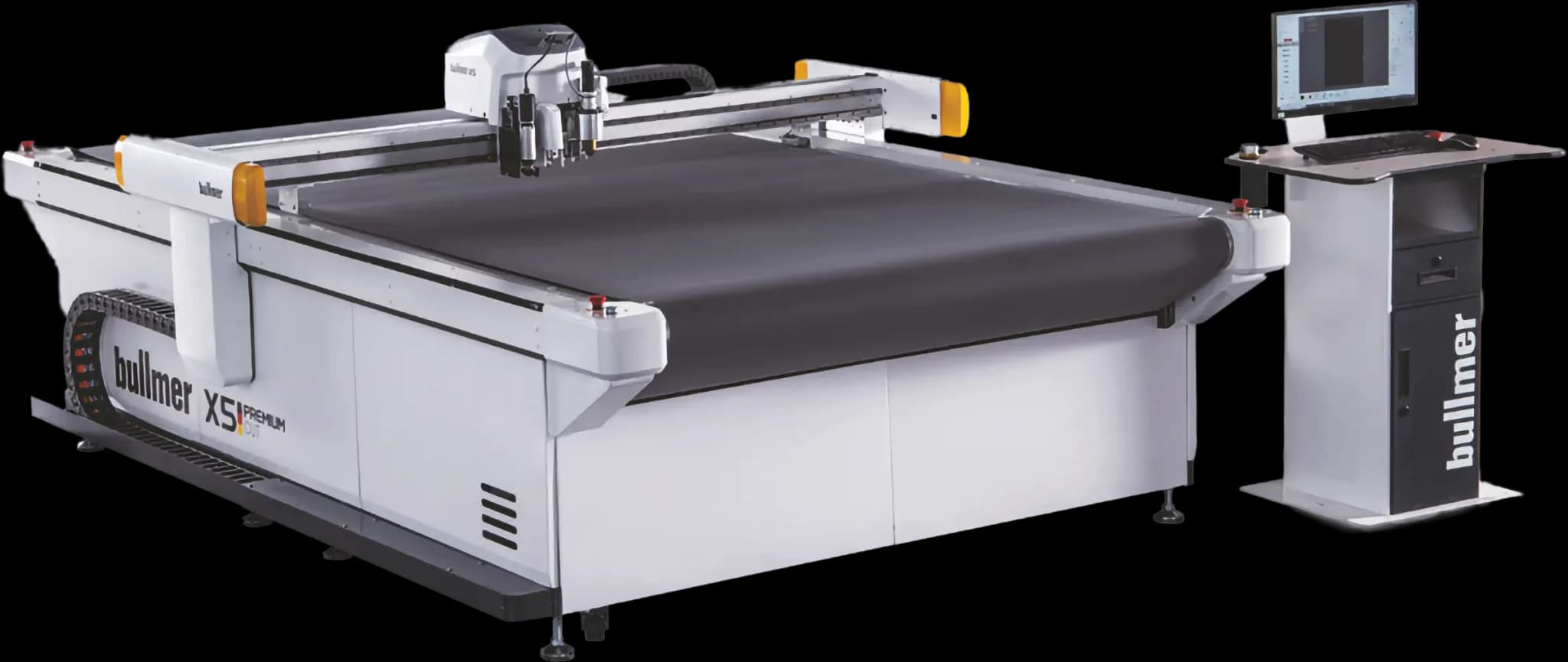

High-speed single-layer conveyor cutter for industrial production.
A single-layer cutter for continuous production runs. Material rides through on the vacuum conveyor, so cutting length is limited by the roll rather than by the table. Ships with an electric oscillating knife and a drag knife; takes a pneumatic knife, kiss-cut, V-cut, creasing and router tools.
Used for
Furniture and upholstery
Upholstery fabric, leather and cushion foam, cut from the roll or the hide.
Signs and displays
Print a board on a UV flatbed, then cut foam board, acrylic and vinyl to the printed marks.
Gaskets, composites and technical textiles
Rubber and gasket sheet, carbon and glass fabric, felt.
Materials it cuts
Every material here is one the tools this machine takes are rated for. The table says which tool cuts it, how thick it can be, and which printer prints it.
Features
Technical Specifications
| Working area | 98 × 126 in (2500 × 3200 mm) |
| Max Speed | 71 in/s (1800 mm/s) |
| Max Acceleration | 1.5G |
| Repeat accuracy | ±0.002 in (±0.05 mm) |
| Max cutting Thickness | 2 in (50 mm) |
| Drive Mode | Grinding grade rack and pinion + linear guide |
| Motion Controller | EtherCat + Servo Motor |
| Material Transport | Conveyor table |
| Format | PLT, DXF, NC, CUT |
| File Transport | Ethernet Cable |
| Material Fixation mode | Vacuum Suction |
| Power Standard | 380V/220V AC 50Hz/60Hz |
Configure your BULLMER X5
Tools
Options
Your configuration
- Base machine
- $78,063
Nothing selected yet.
Buy it outright
We confirm availability, lead time and installation, and send a written quote for exactly this list.
Financing
Pay for it monthly
Set a down payment and a term to see what this configuration costs a month.
Down payment
Term
$78,063 financed at an assumed 9%
This calculation is for illustrative purposes only. Actual monthly payments will vary based on credit. Check with your sales rep for exact monthly payments. Financing provided by Geneva Capital, LLC.
Still have questions?
An engineer will answer them — the tooling, the materials, the install.
