- 24 × 35 in (600 × 900 mm)
- Working area
- aviation aluminum vacuum table
- Bed type
Bench cutter with a 600 × 900 mm bed and an optional roll feed.
The S2 bed enlarged to 600 × 900 mm, with an optional roll device that feeds material straight onto the table instead of it being sheeted first. Same tool set: drag knife, oscillating blade, V-cut, creasing and marking, with camera registration for print-and-cut.

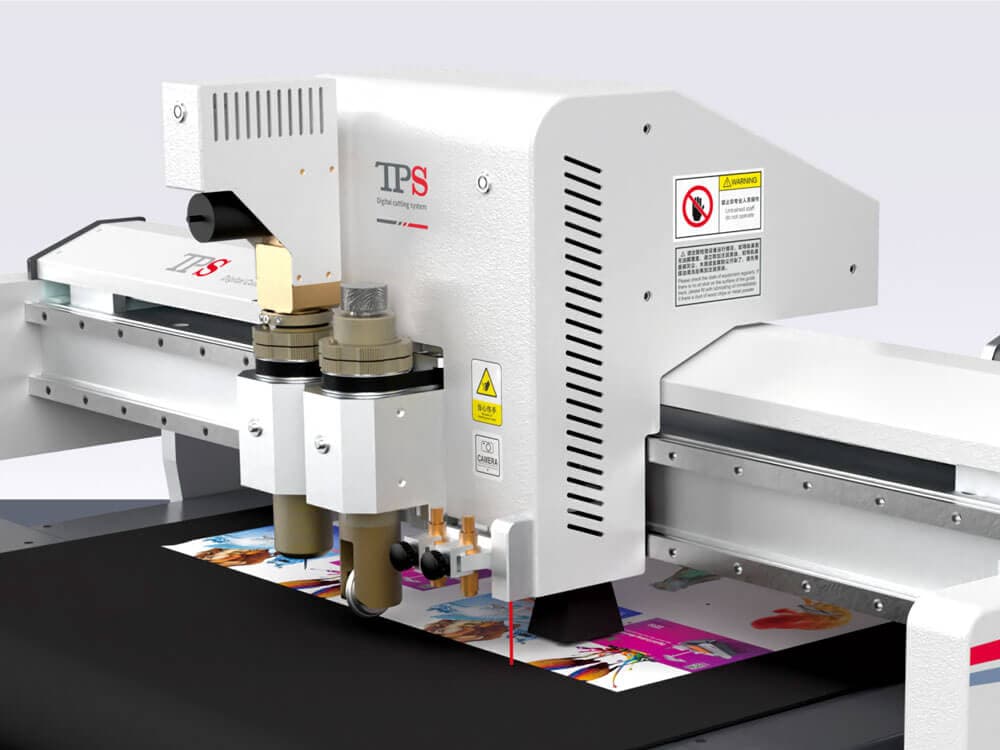

Tool Head System
Designed for flexibility and precision, this universal system allows you to switch between operations seamlessly, making it the perfect solution for small workshops that handle a variety of materials and orders.
Automatic lifting material device
The device will automatically lift the material to the inductive position of red light. The material arranging device will separate the material by blowing and then convey the material into the processing table for processing by the suspending material sucker, effectively prevent the "material taken" phenomenon during the feeding process.

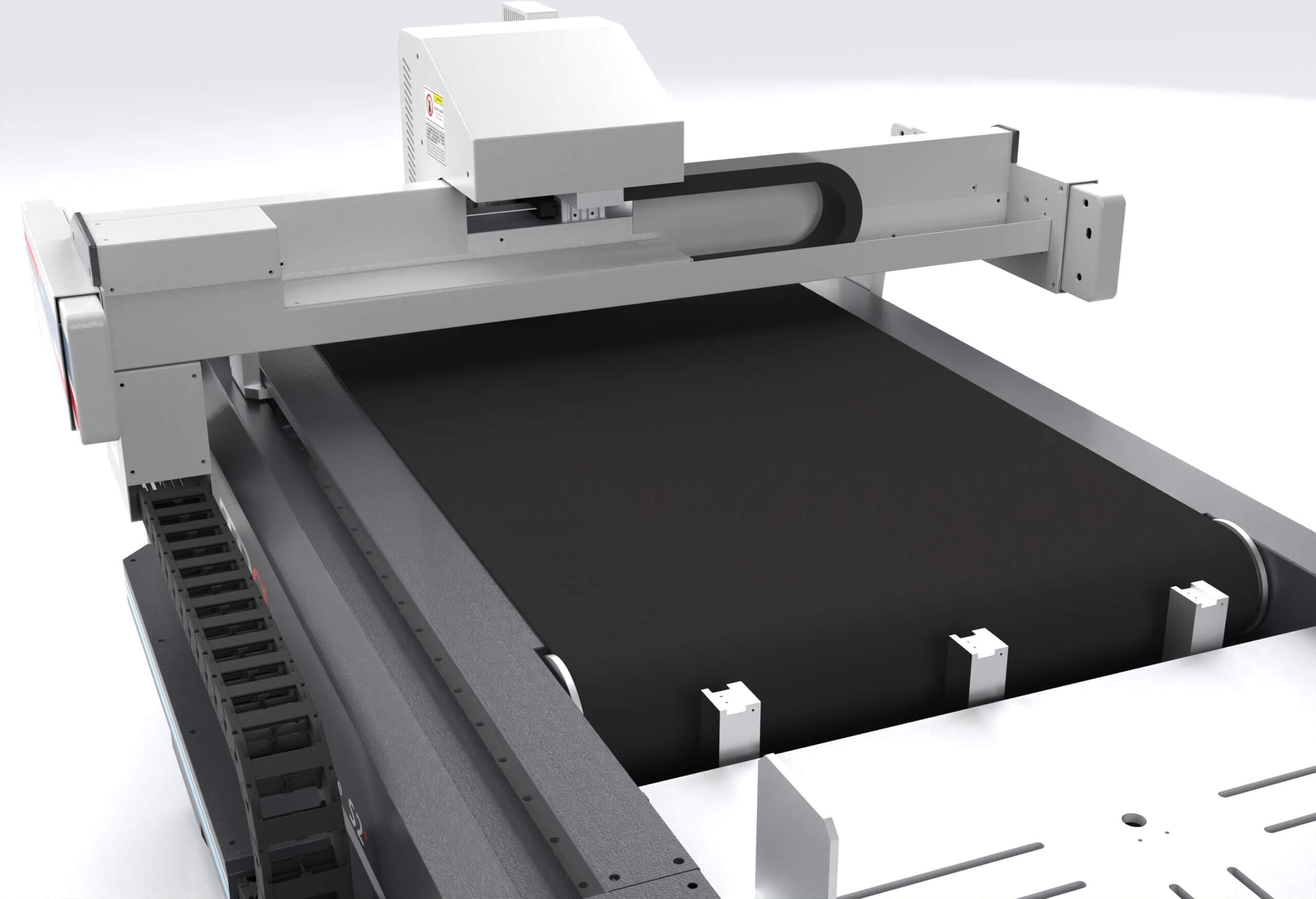

Cutting table
It adopts aviation aluminum vacuum table with strong adsorption to ensure high precisely cutting. The maximum cutting size is 600x900mm. Tracked cutting felt with good breathability, can automatically convey processed materials to the finished product collection box.

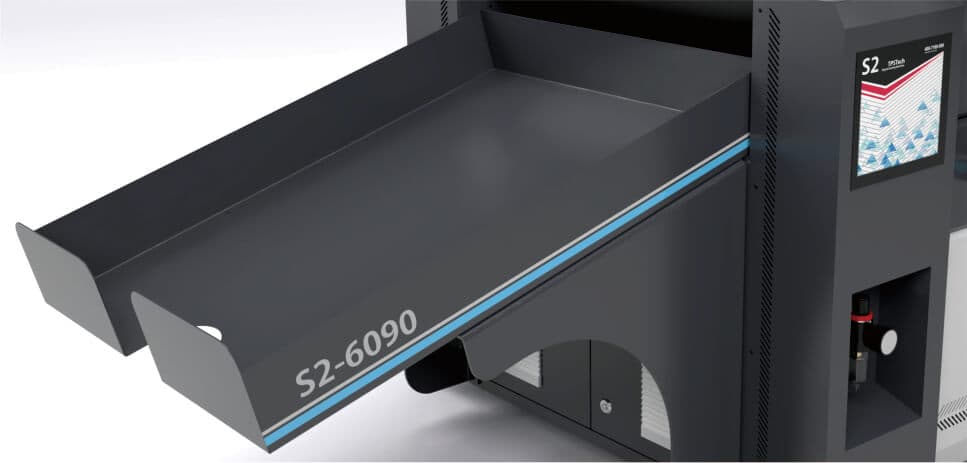

Finished product collection
The collection can gather the finished products. Needless to collect materials manually, it is convenient to collect the finished products automatically when no personal supervises.
Roll Material Loading Device
A roll material holder makes it easy to automatically feed roll materials for continuous roll to table operations.
Technical Specifications
| Working area | 24 × 35 in (600 × 900 mm) |
| Power Consumption | 3kW |
| Vacuum Pump Power | 1.5kW |
| Voltage | 220V 60Hz/50Hz |
| Max Media Width | 24 × 35 in (600 × 900 mm) |
| Max Media Thickness | Up to 0.4 in (up to 10 mm), depends on material |
| Portal Height | 0.8 in (20 mm) |
| Max Processing Speed | 236 ft/min (72 m/min) |
| Quantity of servomotors | 5 pcs |
| Net Weight | 1,010 lb (460 kg) |
| Dimensions | 128 × 45 × 47 in (3250 × 1145 × 1200 mm) |
Tools
Creasing Wheel Tool
Creases corrugated and non-corrugated cardboard as well as some corrugated plastics, foam boards, and thin plastics.
Drag Knife Tool
The drag tool head is not motor-driven, which makes it perfect for through-cutting material at high speed.
Driven Rotary Tool
This tool is designed to cut a wide variety of flexible materials like UV fabric, carbon fabric, glass fabric, textiles, and more.
Electric Oscillating Tool
The Electric Oscillating Tool excels at cutting composite material, leather, corrugated paper, and woven fabric.
Pneumatic Oscillating Tool
Powerful oscillating tool with extended stroke for cutting tough, dense materials.
Plotting Pen Tool
A tool for precisely marking/labeling materials including fabric, leather, rubber, and Teflon. The plotting pen is used to draw assembly marks, line symbols, and text.
Tape Applicator Tool
The Tape Application Tool automatically applies adhesive tape to various materials, such as cardboard, paper, or film, during the cutting and assembly process.
V-Cut Tool
The V-Cut Tool Head is ideal for producing complex structural designs from Foamcore or sandwich board materials.
